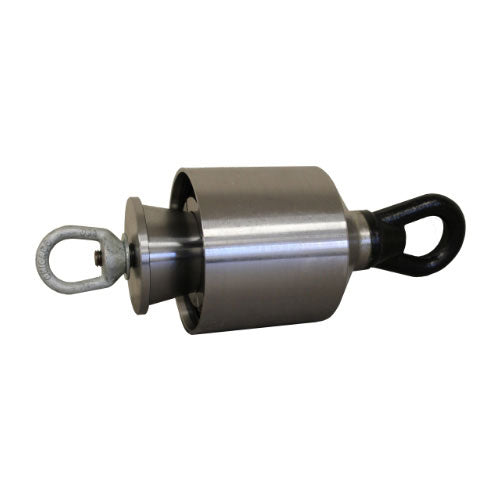

Condux 08220622 1.50" x 6.23" PE & PVC Long Sleeved Pulling Eye
Description
Description
Condux 08220622 Description
The Condux PE & PVC Pulling Eyes feature three designs to suit your needs. The non-sleeved design provides optimum gripping power, an extremely rigid center rod to prevent bending, and a steal tapered lead cone with the same O.D. as the conduit. The sleeved version are water tight eyes that feature a multiple O-Ring configuration. These also have an extremely rigid center rod and sleeves designed to protect the outer leading edge of the conduit to form a water tight seal. Both designs feature split gripping segments with aggressive gripping threads, coupled with a steel expansion plug that better grips the full range of conduit I.Ds. Installation of the PE & PVC Pulling Eyes simply requires the leading eye to be tightened. The pulling eyes come standard with attachment eyes at both ends for connecting rope or steel lines. Pull-out strengths generally exceed the tensile capacity of the conduit. NOTE: PE & PVC Pulling Eyes come with a 90 day limited warranty.
Condux 08220622 Includes
- (1) 1.50" x 6.23" PE & PVC Long Sleeved Pulling Eye
Condux 08220622 Features
- Multiple O-Ring configuration
- Extremely rigid center rod and sleeves
- Split gripping segments with aggressive gripping threads
- 90 day limited warranty
Condux 08220622 Specifications
| Part Number | 08220622 |
| Size | 1.50 in. (38 mm) |
| Length | 6.23 in. (158 mm) |
| Minimum - Conduit ID | 1.50 in. (38 mm) |
| Maximum - Conduit ID | 1.75 in. (44 mm) |
| Lead Cone OD | 2.01 in. (51 mm) |
| Duct Type | 1.50 SDR 11.0, 1.50 SDR 13.5, 1.50 SCH 40, 1.50 SDR 15.5, 1.50 SDR 17.0, 1.50 SDR 21.0 |
| Nominal Duct ID | 1.53 in. (39 mm), 1.60 in. (41 mm), 1.61 in. (41 mm), 1.63 in. (41 mm), 1.66 in. (42 mm), 1.72 in. (44 mm) |
