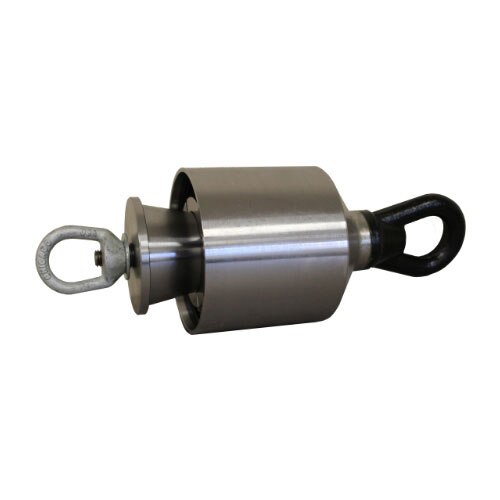

Condux 08220623 2" x 8.18" PE & PVC Long Sleeved Pulling Eye
Description
Description
Condux 08220623 Description
The Condux PE & PVC Pulling Eyes feature three designs to suit your needs. The non-sleeved design provides optimum gripping power, an extremely rigid center rod to prevent bending, and a steal tapered lead cone with the same O.D. as the conduit. The sleeved version are water tight eyes that feature a multiple O-Ring configuration. These also have an extremely rigid center rod and sleeves designed to protect the outer leading edge of the conduit to form a water tight seal. Both designs feature split gripping segments with aggressive gripping threads, coupled with a steel expansion plug that better grips the full range of conduit I.Ds. Installation of the PE & PVC Pulling Eyes simply requires the leading eye to be tightened. The pulling eyes come standard with attachment eyes at both ends for connecting rope or steel lines. Pull-out strengths generally exceed the tensile capacity of the conduit. NOTE: PE & PVC Pulling Eyes come with a 90 day limited warranty.
Condux 08220623 Includes
- (1) 2" x 8.18" PE & PVC Long Sleeved Pulling Eye
Condux 08220623 Features
- Multiple O-Ring configuration
- Extremely rigid center rod and sleeves
- Split gripping segments with aggressive gripping threads
- 90 day limited warranty
Condux 08220623 Specifications
| Part Number | 08220623 |
| Size | 2.0 in. (51 mm) |
| Length | 8.18 in. (208 mm) |
| Minimum - Conduit ID | 1.88 in. (48 mm) |
| Maximum - Conduit ID | 2.15 in. (55 mm) |
| Lead Cone OD | 2.45 in. (62 mm) |
| Duct Type | 2.0 SDR 11.0, 2.0 SDR 13.5, 2.0 SDR 15.5, 2.0 SCH 40, 2.0 SDR 17.0, 2.0 SDR 21.0 |
| Nominal Duct ID | 1.92 in. (49 mm), 2.00 in. (51 mm), 2.05 in. (52 mm), 2.07 in. (53 mm), 2.08 in. (53 mm), 2.15 in. (55 mm) |
