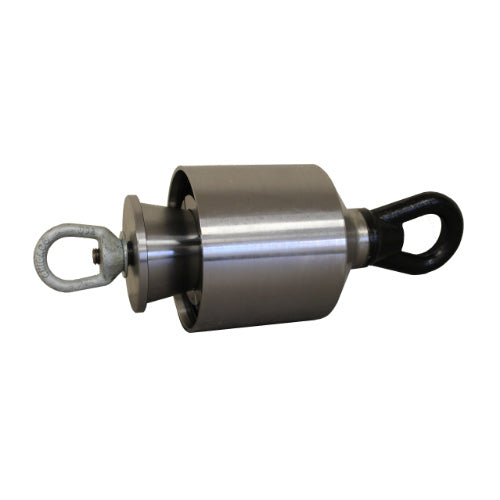

Condux 08220625 3" Long Sleeved Pulling Eye, 2.688" - 3.125" Conduit ID
Description
Description
Condux 08220625 Description
The Condux PE & PVC Pulling Eyes feature three designs to suit your needs. The non-sleeved design provides optimum gripping power, an extremely rigid center rod to prevent bending, and a steal tapered lead cone with the same O.D. as the conduit. The sleeved version are water tight eyes that feature a multiple O-Ring configuration. These also have an extremely rigid center rod and sleeves designed to protect the outer leading edge of the conduit to form a water tight seal. Both designs feature split gripping segments with aggressive gripping threads, coupled with a steel expansion plug that better grips the full range of conduit I.Ds. Installation of the PE & PVC Pulling Eyes simply requires the leading eye to be tightened. The pulling eyes come standard with attachment eyes at both ends for connecting rope or steel lines. Pull-out strengths generally exceed the tensile capacity of the conduit.
Condux 08220625 Includes
- (1) 3" Long Sleeved Pulling Eye, 2.688" - 3.125" Conduit ID
Condux 08220625 Features
- Multiple O-Ring configuration
- Extremely rigid center rod and sleeves
- Split gripping egments
- PE & PVC Pulling Eyes come with a 90 day limited warranty
Condux 08220625 Specifications
| Part Number | 08220625 |
| Size | 3" (76 mm) |
| Length | 11.89" (302 mm) |
| Minimum Conduit ID | 2.69" (68 mm) |
| Maximum Conduit ID | 3.13" (79 mm) |
| Lead Cone OD | 3.63" (92 mm) |
| Duct Type | 3.0 SDR 11.0, 3.0 SDR 13.5, 3.0 SDR 15.5, 3.0 SDR 17.0, 3.0 SCH 40 |
| Nominal Duct ID | 2.83" (72 mm), 2.95" (75 mm), 3.02" (77 mm), 3.06" (78 mm), 3.07" (78 mm) |
