Condux | SKU:
08549330

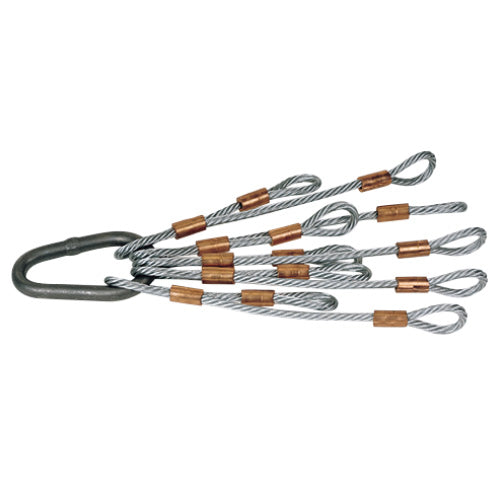

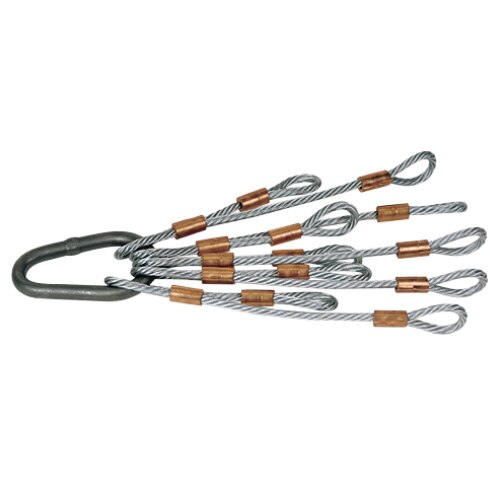

Condux 08549330 10 Way 3/8" Cable Multiple Pulling Harness
Free Shipping
$407.99
Unit price
/
Unavailable
Description
Description
Condux 08549330 Description
Allows staggered attachment to cable or innerduct when pulling through conduit systems or during directional drilling pull-back operations. NOTE: 10 & 12 Way 3/8"" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Condux 08549330 Includes
- (1) 10 Way 3/8" Cable Multiple Pulling Harness
Condux 08549330 Specifications
| Part Number | 08549330 |
| Description | 10 Way 3/8" (10mm) Cable |
| Working Load Per Leg | 4,800 lbs (21,351 N) |
| Working Load Combined | 6,000 lbs (26,689 N) |

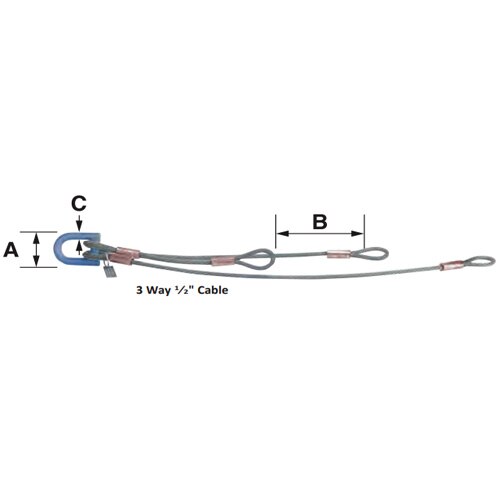

| Max Width (A) | 4.50 in. (114 mm) |
| Separation Between Legs (B) | 6 in. (152 mm) |
| Lead Ring Diameter (C) | .75 in. (19 mm) |
