Condux | SKU:
08610650S
Condux 08610650S 110 Volt Standard Cable Puller Split
$10,002.68
$11,841.66
Unit price
/
Unavailable
Description
Description
Condux 08610650S Description

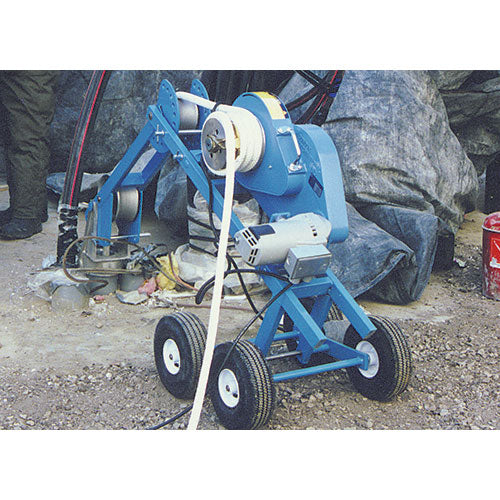

Self-contained unit to adapt to a variety of pulling situations. It comes equipped with a two-speed removable power pack, providing up to 6,500 pounds (28,912 N) of pulling force at low speed. Speed changes are no problem with just a turn of a dial. Design features include a self-tailing capstan for added stability, a pivoting arm and a foot switch for operator convenience and safety. Accepts all diameter rope (self-tailing capstan accepts 5?8" (16 mm) to 7?8" (22 mm) rope only).
Condux 08610650S Includes
- (1) 110 Volt Standard Cable Puller Split
- (1) Foot switch
- (1) Split
- (1) Split
- (1) 2” (51mm)
- (1) 3” (76mm)
- (1) 3 1/2” (89mm)
- (1) 4” (102)mm
- (1) Tool box for the accessories
Condux 08610650S Features
- Two speed removable power pack
- 6500 pounds of pulling force at low speed
- Self Tailing Capstan for addes Stability
- Accepts all diameter rope
- Pivoting Arm
- Vertical pull from floor
- Vertical pull down from box
- Horizontal pull
- Horizontal Vault Pull
- Vertical Pull with 45 degree elbow
- Portable and easy set-up
- Completely self-contained unit
Condux 08610650S Specifications
| PULLING FORCE | up to 6,500lbs. |
| PULLING SPEED | 39.2ft/min |
| PEAK POWER | 1.9 HP (1.42 kW) |
| GENERATOR | 4000 Watt Recommended* |
