Condux 08641640 Description

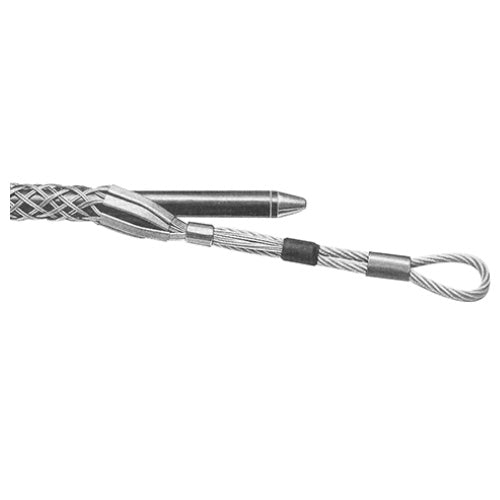

Dua-Pull® Pulling Grips are the highest strength pulling grips manufactured for overhead transmission line stringing applications. They are most commonly used for attaching pulling lines to conductors, conductors to running boards and double socking for conductor-to-conductor connections. They accommodate ACSR, ACAR, all aluminum and copper conductors, ground wires messenger strands and synthetic ropes not provided by any other grip. The Feed Tube is used when assembling synthetic rope into the Dua-Pull Grip. It is required on the two largest sizes of Dua-Pull Grips. Feed Tubes are available for use on all sizes of Dua-Pull Grips.
Condux 08641640 Includes
- (1) 1.25" - 1.70" x 83" Dua-Pull Feed Tube
Condux 08641640 Specifications
| Part Number | 08641640 |
| Description | 091-06-1047 |
| For Use With Dua-Pull Grip | 08641740 |
| Rope Diameter | 1.25 in. – 1.70 in. (32 mm – 43 mm) |
| Feed Tube Length | 83 in. (2,108 mm) |
