Condux | SKU:
08641710

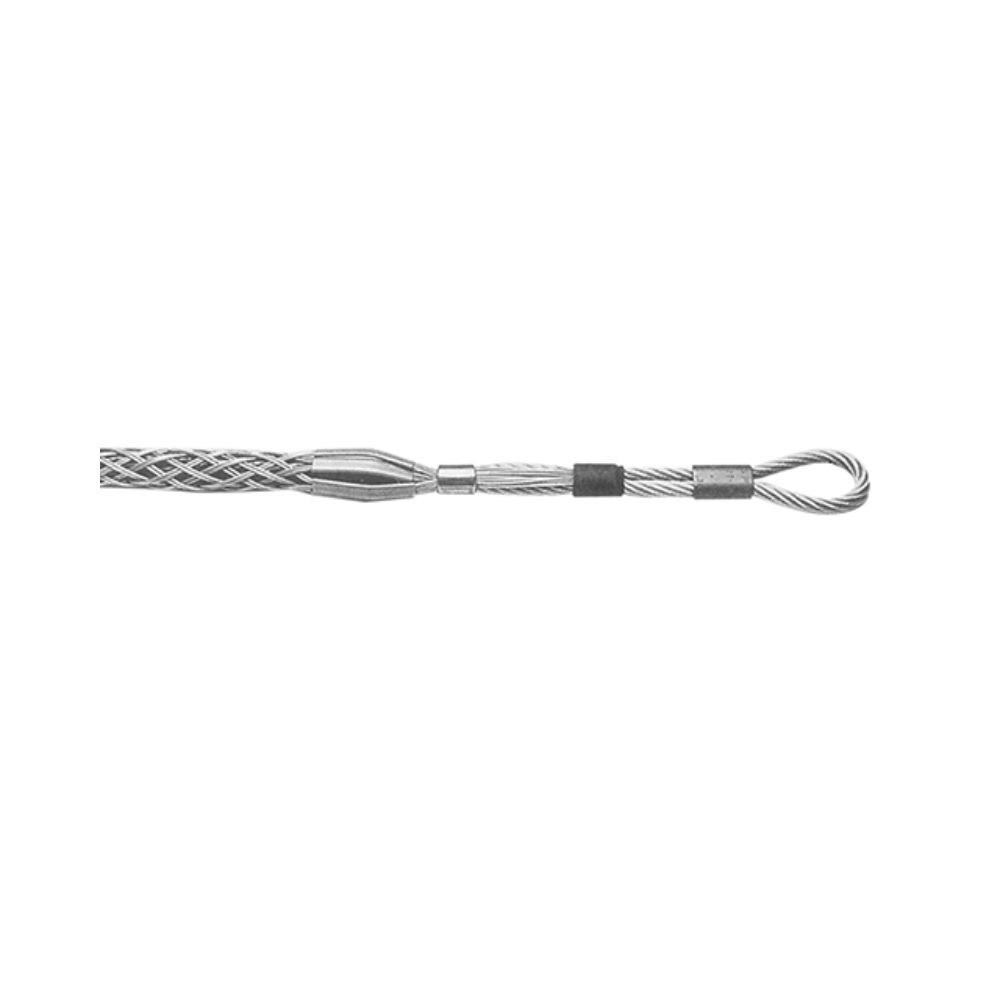

Condux 08641710 .25" - .65" Rope Dia. Black Dua-Pull Pulling Grip
Free Shipping
$343.43
$457.90
Unit price
/
Unavailable
Description
Description
Condux 08641710 Description
Dua-Pull Pulling Grips are the highest strength pulling grips manufactured for overhead transmission line stringing applications. They are most commonly used for attaching pulling lines to conductors, conductors to running boards and double socking for conductor-to-conductor connections. They accommodate ACSR, ACAR, all aluminum and copper conductors, ground wires messenger strands and synthetic ropes not provided by any other grip. Dua-Pull is a registered trademark of Kellems.
Condux 08641710 Includes
- (1) .25" - .65" Rope Dia. Black Dua-Pull Pulling Grip
Condux 08641710 Specifications
| Part Number | 08641710 |
| Description | 033-27-1037 |
| Color | Black |
| Conductor Diameter Range | .19–.37 in. (5–9 mm) |
| Rope Diameter Range | .25–.65 in. (6–17 mm) |
| Approximate Breaking Strength | 6,500 lbs (28,912 N) |
| Eye Length (E) | 10 in. (254 mm) |
| Mesh length at nominal diameter (M) | 24 in. (610 mm) |
| B | .218 in. (6 mm) |
