Condux 08641716 .50" - .90" Dia. Green Dua-Pull Pulling Grip
Free Shipping
$360.29
$480.38
Unit price
/
Unavailable
Description
Description
Condux 08641716 Description
Dua-Pull® Pulling Grips are the highest strength pulling grips manufactured for overhead transmission line stringing applications. They are most commonly used for attaching pulling lines to conductors, conductors to running boards and double socking for conductor-to-conductor connections. They accommodate ACSR, ACAR, all aluminum and copper conductors, ground wires messenger strands and synthetic ropes not provided by any other grip.
Condux 08641716 Includes
- (1) .50" - .90" Dia. Green Dua-Pull Pulling Grip
Condux 08641716 Specifications
| Part Number | 08641716 |
| Description | 033-27-1038 |
| Color | Green |
| Conductor Diameter Range | .38 - .62 in. (10 - 16 mm) |
| Rope Diameter Range | .50 - .90 in. (13 - 23 mm) |
| Approximate Breaking Strength | 14,000 lbs (62,272 N) |

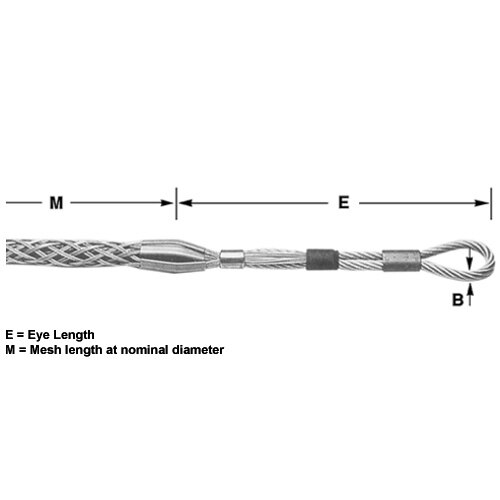

| Eye Length (E) | 12 in. (305 mm) |
| Mesh length at nominal diameter | 36 in. (914 mm) |
| B | .375 in. (10 mm) |
