Condux | SKU:
08641831

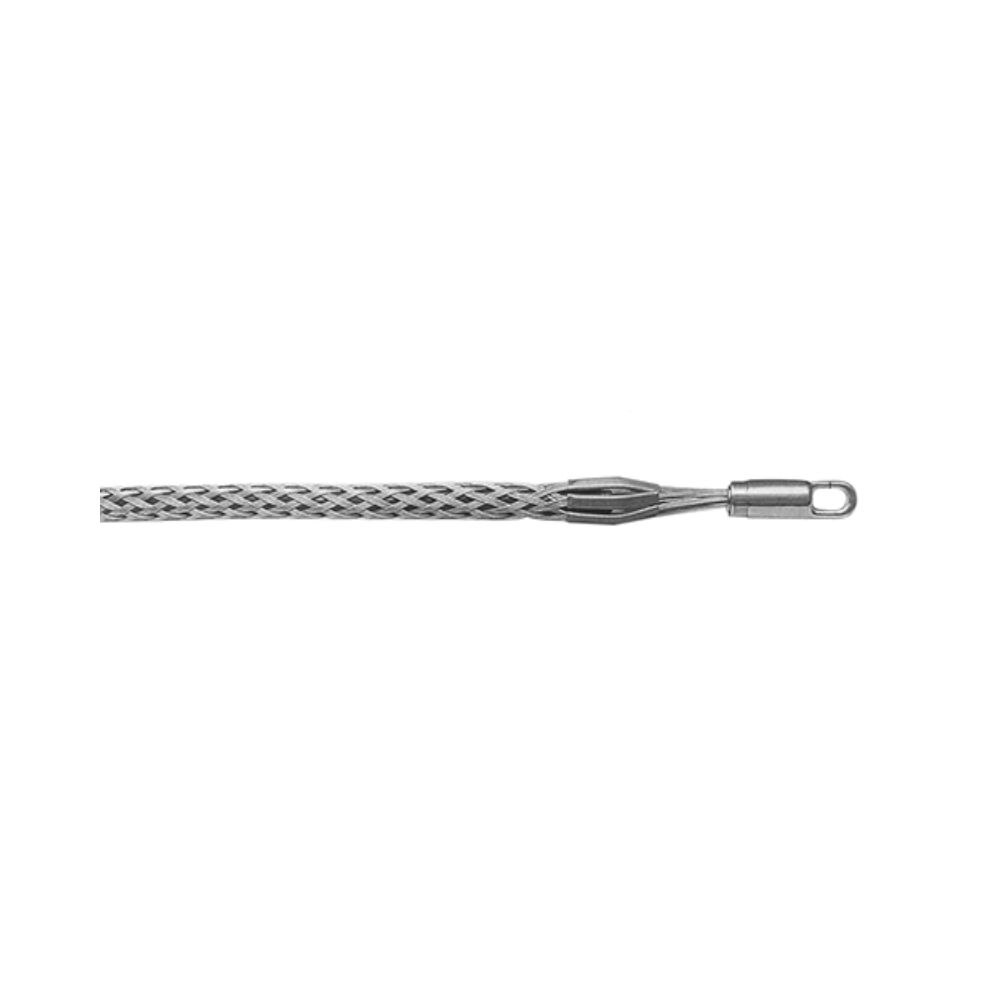

Condux 08641831 .75" - .99" Cable Dia. Rotating Eye Multiple Strength Grip
Free Shipping
$282.21
$376.28
Unit price
/
Unavailable
Description
Description
Condux 08641831 Description
Multiple Strength Pulling Grips are designed for pulling ACSR, aluminum or copper bare conductor, ground wires, messenger strands, wire rope and insulated cables. They are ideal for overhead transmission and distribution line stringing where moderate loading is anticipated. They are economical tools used for attaching conductors to pulling lines and double socking for conductor-to-conductor connections. Rotating Eye is not a swivel. It will not turn while under tension, but it can turn to relieve pulling torque when the tension is relaxed.
Condux 08641831 Includes
- (1) .75" - .99" Cable Dia. Rotating Eye Multiple Strength Grip
Condux 08641831 Specifications
| Part Number | 08641831 |
| Description | 033-02-020 |
| Color | Light Blue |
| Cable Diameter Range | .75–.99 in. (19–25 mm) |
| Approximate Breaking Range | 14,400 lbs (64,051 N) |
| Eye Length (E) | 6 in. (152 mm) |
| Mesh length at nominal diameter (M) | 41 in. (1,041 mm) |
| OD Rotate Eye | 1 in. (25 mm) |
| Thickness of Eye | .513 in. (13 mm) |
