Condux 08641843 1.25" - 1.49" Dia. Multiple Strength Grip - Rotating Eye
Free Shipping
$443.66
$591.55
Unit price
/
Unavailable
Description
Description
Condux 08641843 Description
Multiple Strength Pulling Grips are designed for pulling ACSR, aluminum or copper bare conductor, ground wires, messenger strands, wire rope and insulated cables. They are ideal for overhead transmission and distribution line stringing where moderate loading is anticipated. They are economical tools used for attaching conductors to pulling lines and double socking for conductor-to-conductor connections. Rotating Eye is not a swivel. It will not turn while under tension, but it can turn to relieve pulling torque when the tension is relaxed.
Condux 08641843 Includes
- (1) 1.25" - 1.49" Dia. Multiple Strength Grip - Rotating Eye
Condux 08641843 Specifications
| Part Number | 08641843 |
| Description | 033-02-024 |
| Color | Black |
| Cable Diameter Range | 1.25 - 1.49 in. (32 - 38 mm) |
| Approximate Breaking Strength | 30,600 lbs (136,109 N) |

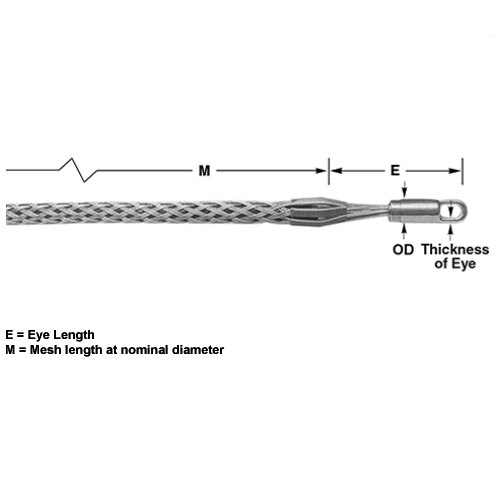

| Eye Length (E) | 8 in. (203 mm) |
| Mesh length at nominal diameter (M) | 56 in. (1,422 mm) |
| OD Rotate Eye | 1 5?8 in. (41 mm) |
| Thickness of Eye | .667 in. (17 mm) |
