Condux | SKU:
08641952
Condux 08641952 1.75" - 2.24" Dia. Multiple Strength Grip - Flexible Eye
Free Shipping
$534.45
$712.60
Unit price
/
Unavailable
Description
Description
Condux 08641952 Description
Multiple Strength Pulling Grips are designed for pulling ACSR, aluminum or copper bare conductor, ground wires, messenger strands, wire rope and insulated cables. They are ideal for overhead transmission and distribution line stringing where moderate loading is anticipated. They are economical tools used for attaching conductors to pulling lines and double socking for conductor-to-conductor connections.
Condux 08641952 Includes
- (1) 1.75" - 2.24" Dia. Multiple Strength Grip - Flexible Eye

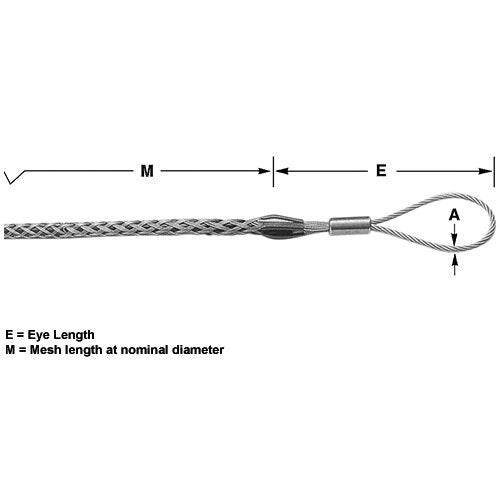

Condux 08641952 Specifications
| Part Number | 08641952 |
| Description | 033-02-056 |
| Color | Dark Blue |
| Cable Diameter Range | 1.75 - 2.24 in. (44 - 57 mm) |
| Approximate Breaking Strength | 48,000 lbs (213,504 N) |
| Eye Length (E) | 18 in. (457 mm) |
| Mesh Length at Nominal Diameter (M) | 70 in. (1,778 mm) |
| Cable Diameter (A) | 5?8 in. (16 mm) |
