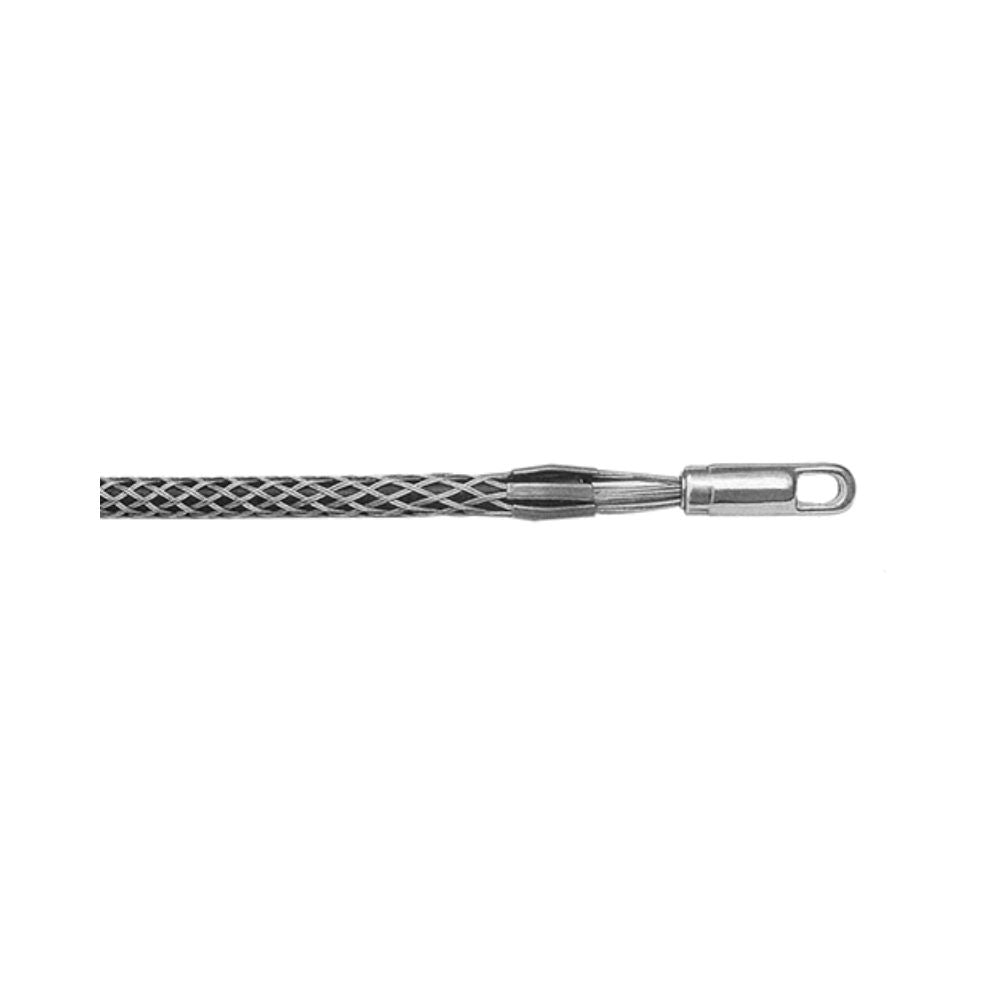

Condux 08642049 1.50" - 1.99" Cable Dia. Short Forged Eye K-Type Grip
Free Shipping
$311.24
$403.14
Unit price
/
Unavailable
Description
Description
Condux 08642049 Description
Rotating Eye, K-Type Pulling Grips are made of high strength galvanized steel strand. All grips feature double weave mesh for greater strength and added mesh contact on the cable, to handle longer or heavier pulling jobs. The forged eye mates easily with a swivel or shackle. They are specially designed for use in the installation of underground power cables, communication lines and service lines into factories, shopping centers, construction projects and general underground electrical construction.
Condux 08642049 Includes
- (1) 1.50" - 1.99" Cable Dia. Short Forged Eye K-Type Grip
Condux 08642049 Features
- Made of high strength galvanized steel strand
- Double weave mesh
- The forged eye mates easily with a swivel or shackle
Condux 08642049 Specifications
| Part Number | 08642049 |
| Description | 033-01-017 |
| Cable Diameter Range | 1.50–1.99 in. (38–51 mm) |
| Approximate Breaking Strength | 16,400 lbs (72,947 N) |
| Eye Length (E) | 7 in. (178 mm) |
| Mesh length at nominal diameter (M) | 25 in. (635 mm) |
| OD Rotate Eye | 1 3?8 in. (35 mm) |
| Thickness of Eye | .525 in. (13 mm) |
