Condux 08642061 3.00" - 3.49" Dia. Short K-Type Grip, Forged Eye
Free Shipping
$465.78
$621.04
Unit price
/
Unavailable
Description
Description
Condux 08642061 Description
Rotating Eye, K-Type Pulling Grips are made of high strength galvanized steel strand. All grips feature double weave mesh for greater strength and added mesh contact on the cable, to handle longer or heavier pulling jobs. The forged eye mates easily with a swivel or shackle. They are specially designed for use in the installation of underground power cables, communication lines and service lines into factories, shopping centers, construction projects and general underground electrical construction.
Condux 08642061 Includes
- (1) 3.00" - 3.49" Dia. Short K-Type Grip, Forged Eye
Condux 08642061 Features
- Made of high strength galvanized steel strand
- Double weave mesh
- Forged eye
Condux 08642061 Specifications
| Part Number | 08642061 |
| Description | 033-01-020 |
| Cable Diameter Range | 3.00 - 3.49 in. (76 - 89 mm) |
| Approximate Breaking Strength | 41,000 lbs (182,368 N) |

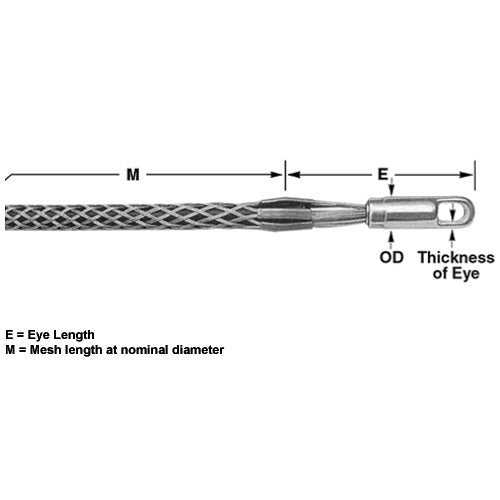

| Eye Length (E) | 10 in. (254 mm) |
| Mesh length at nominal diameter (M) | 30 in. (762 mm) |
| OD Rotate Eye | 1 7/8 in. (48 mm) |
| Thickness of Eye | 0.69 in. (18 mm) |
