Condux  |  SKU: 08642149  |  Barcode: 781727189208

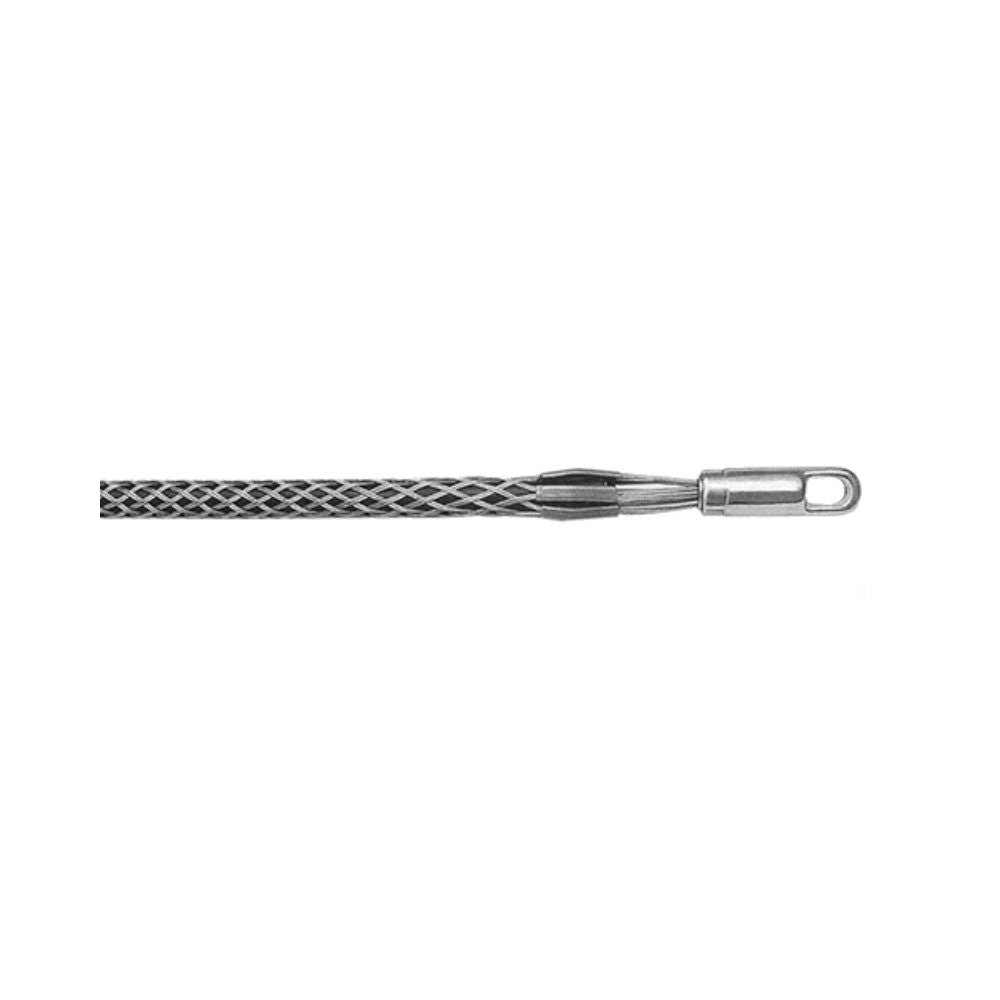

Condux 08642149 1.50" - 1.99" Cable Dia. Standard Forged Eye K-Type Grip

Free Shipping
$317.34 $423.12

Description

Condux 08642149 Description

Rotating Eye, K-Type Pulling Grips are made of high strength galvanized steel strand. All grips feature double weave mesh for greater strength and added mesh contact on the cable, to handle longer or heavier pulling jobs. The forged eye mates easily with a swivel or shackle. They are specially designed for use in the installation of underground power cables, communication lines and service lines into factories, shopping centers, construction projects and general underground electrical construction.

Condux 08642149 Includes

  • (1) 1.50" - 1.99" Cable Dia. Standard Forged Eye K-Type Grip

Condux 08642149 Features

  • Made of high strength galvanized steel strand
  • Double weave mesh
  • The forged eye mates easily with a swivel or shackle

Condux 08642149 Specifications

Part Number 08642149
Description 033-01-026
Cable Diameter Range 1.50–1.99 in. (38–51 mm)
Approximate Breaking Strength 16,400 lbs (72,947 N)
Eye Length (E) 7 in. (178 mm)
Mesh length at nominal diameter (M) 34 in. (864 mm)
OD Rotate Eye 1 3?8 in. (35 mm)
Thickness of Eye .537 in. (14 mm)
