Condux | SKU:
08642164
Condux 08642164 3.50" - 3.99" Dia. Standard K-Type Grip, Forged Eye
Free Shipping
$602.24
$772.20
Unit price
/
Unavailable
Description
Description
Condux 08642164 Description
Rotating Eye, K-Type Pulling Grips are made of high strength galvanized steel strand. All grips feature double weave mesh for greater strength and added mesh contact on the cable, to handle longer or heavier pulling jobs. The forged eye mates easily with a swivel or shackle. They are specially designed for use in the installation of underground power cables, communication lines and service lines into factories, shopping centers, construction projects and general underground electrical construction.
Condux 08642164 Includes
- (1) 3.50" - 3.99" Dia. Standard K-Type Grip, Forged Eye
Condux 08642164 Features
- Rotating Eye
- Made of high strength galvanized steel strand
- All grips feature double weave mesh
Condux 08642164 Specifications

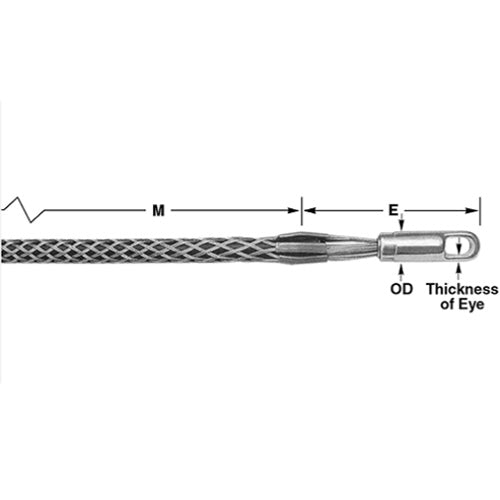

| Part Number | 08642164 |
| Description | 033-01-030 |
| Cable Diameter Range | 3.50 - 3.99 in. (89 - 101 mm) |
| Approximate Breaking Strength | 48,000 lbs (213,504 N) |
| E | 10 in. (254 mm) |
| M | 41 in. (1,041 mm) |
| OD Rotate Eye | 1 7/8 in. (48 mm) |
| Thickness of Eye | 0.67 in. (17 mm) |
