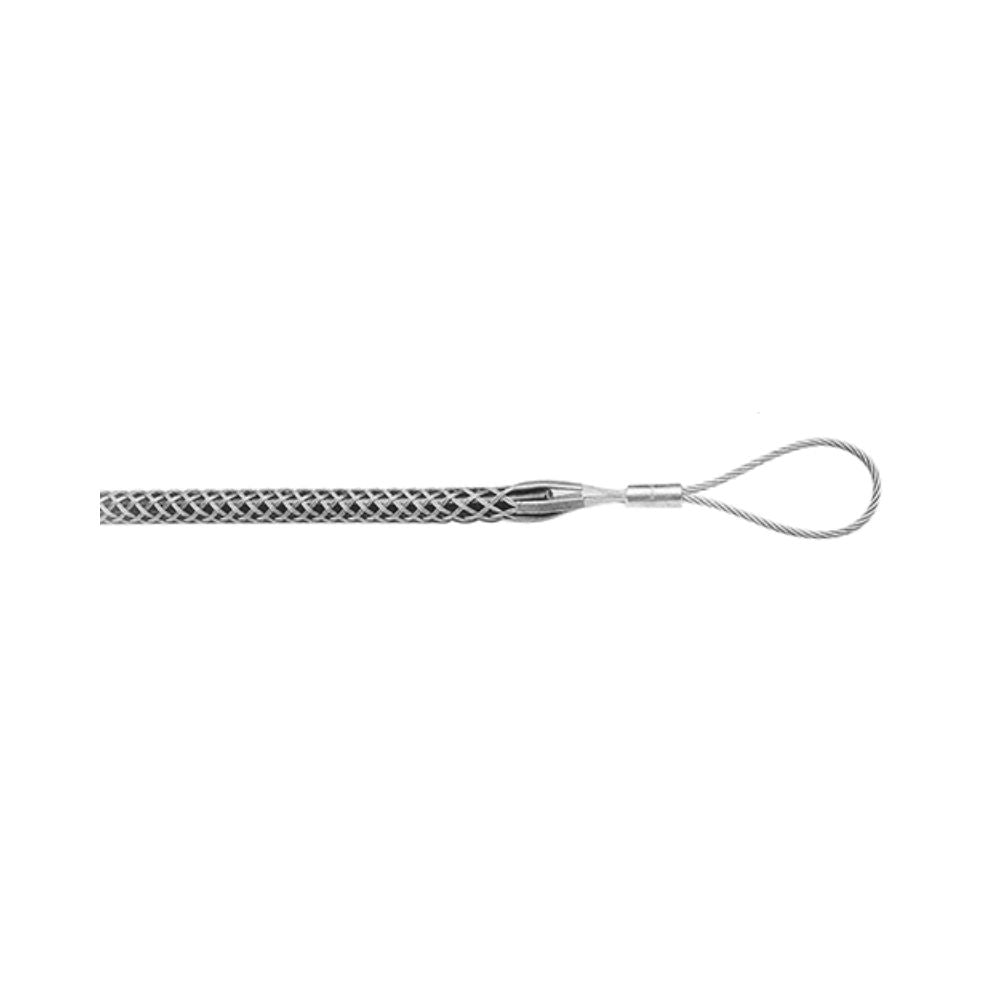

Condux 08642364 3.50" - 3.99" Dia. Flexible Eye Standard T-Type Pulling Grip
Free Shipping
$324.17
$432.24
Unit price
/
Unavailable
Description
Description
Condux 08642364 Description
Flexible T-Type Pulling Grips are made of high strength galvanized steel strand. They feature double weave mesh for positive holding power in medium to heavy pulling jobs. The grip eye will easily attach to a swivel. They are used for the installation of underground power cables, communication lines and service lines into factories, construction projects and for general underground electrical construction. Available in two mesh lengths, short for medium pulls, and standard for general purpose pulling.
Condux 08642364 Includes
- (1) 3.50" - 3.99" Dia. Flexible Eye Standard T-Type Pulling Grip
Condux 08642364 Features
- Made of high strength galvanized steel strand
- Double weave mesh
- The grip eye will easily attach to a swivel
Condux 08642364 Specifications
| Part Number | 08642364 |
| Description | 033-04-1097 |
| Cable Diameter Range | 3.50 - 3.99 in. (89 - 101 mm) |
| Approximate Breaking Strength | 31,000 lbs (137,888 N) |
| Eye Length (E) | 14 in. (356 mm) |
| Mesh length at nominal diameter (M) | 40 in. (1,016 mm) |
