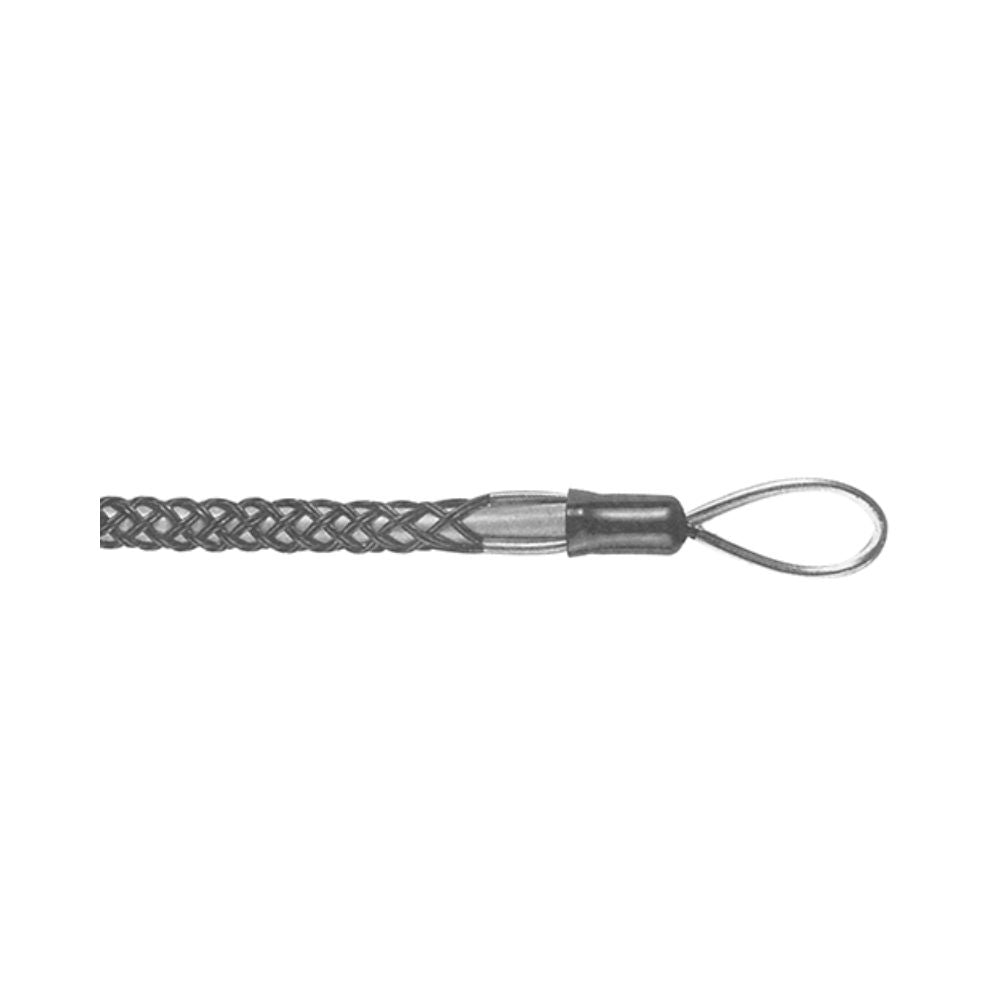

Condux 08642428 .63" - .74" Cable Dia. Yellow Non-Conductive Pulling Grip
Free Shipping
$242.20
$322.94
Unit price
/
Unavailable
Description
Description
Condux 08642428 Description
Non-Conductive Pulling Grips are made of a high strength, non-conductive aramid fiber and are available for pulling single cable or cable bundles. Their braided double weave design adds strength and positive holding power. They were developed for use by utilities for pulling overhead distribution lines in close proximity to energized lines and hardware.
Condux 08642428 Includes
- (1) .63" - .74" Cable Dia. Yellow Non-Conductive Pulling Grip
Condux 08642428 Specifications
| Part Number | 08642428 |
| Description | 036-28-002 |
| Color | Yellow |
| Cable Diameter Range | .63–.74 in. (16–19 mm) |
| Approximate Breaking Strength | 5,000 lbs (22,240 N) |
| Eye Length (E) | 5.5 in. (140 mm) |
| Mesh length at nominal diameter (M) | 26.0 in. (660 mm) |
| Cable Diameter (A) | .44 in. (11 mm) |
