Condux | SKU:
08642431

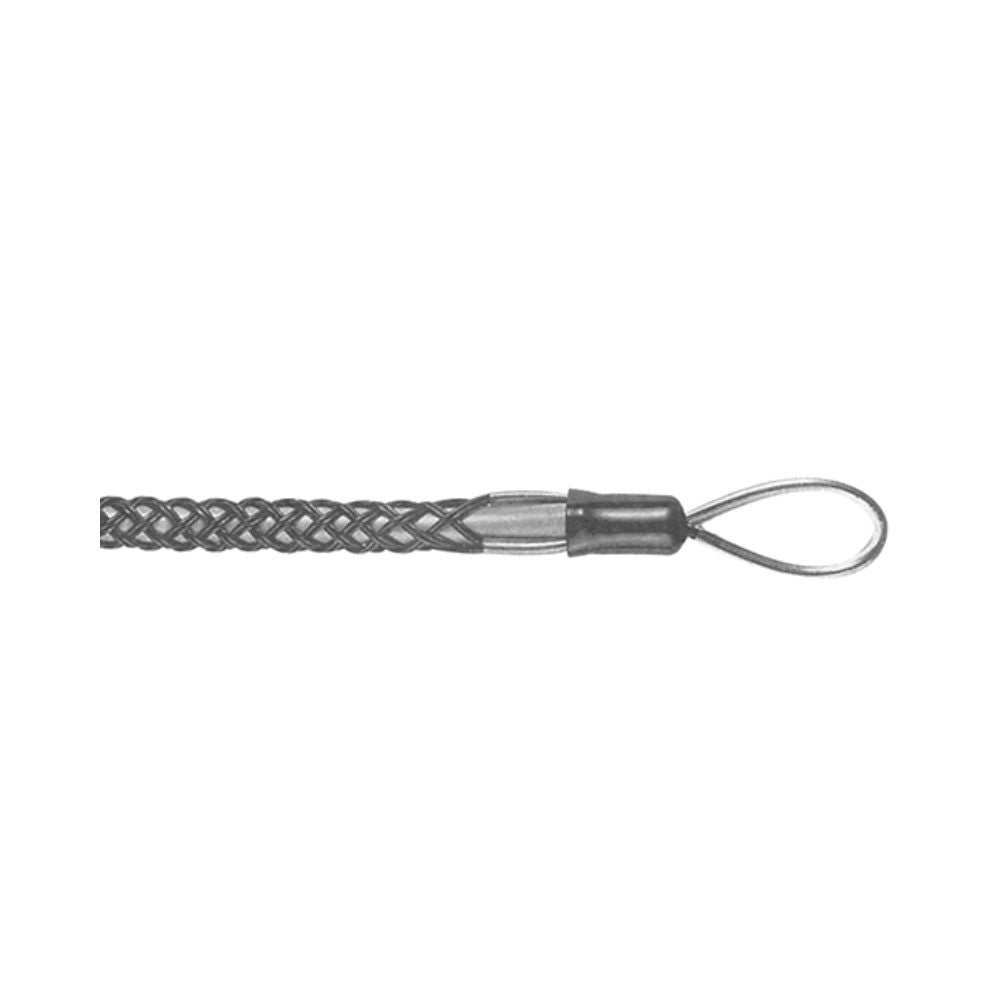

Condux 08642431 .75" - .99" Cable Dia. Red Non-Conductive Pulling Grip
Free Shipping
$278.24
$370.99
Unit price
/
Unavailable
Description
Description
Condux 08642431 Description
Non-Conductive Pulling Grips are made of a high strength, non-conductive aramid fiber and are available for pulling single cable or cable bundles. Their braided double weave design adds strength and positive holding power. They were developed for use by utilities for pulling overhead distribution lines in close proximity to energized lines and hardware.
Condux 08642431 Includes
- (1) .75" - .99" Cable Dia. Red Non-Conductive Pulling Grip
Condux 08642431 Specifications
| Part Number | 08642431 |
| Description | 036-28-003 |
| Color | Red |
| Cable Diameter Range | .75–.99 in. (19–25 mm) |
| Approximate Breaking Strength | 6,000 lbs (26,688 N) |
| Eye Length (E) | 6.0 in. (152 mm) |
| Mesh length at nominal diameter (M) | 31.0 in. (787 mm) |
| Cable Diameter (A) | .63 in. (16 mm) |
