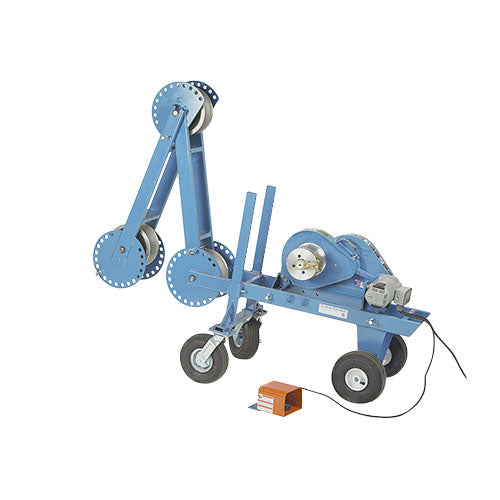

Condux 08674300S 110 Volt Cable Puller Plus Split
Description
Description
Condux 08674300S Description
This model comes equipped with the same removable two-speed, 6,500 lbs (28,912 N) power pack and accessories as our STD model, but features a heavy-duty frame with an extra pivoting arm for added performance and versatility. In addition, the front frame height can easily be adjusted with pins. Like all CableGlider models, the Plus is portable, sets up quickly and comes completely self-contained, ready to work. As with the STD model, the CableGlider Plus features a self-tailing capstan for added stability, a pivoting arm and a foot switch for operator convenience and safety. Accepts all diameter rope (self-tailing capstan accepts 5/8"" (16 mm) to 7/8"" (22 mm) rope only).
Condux 08674300S Includes
- (1) 110 Volt Plus Cable Puller Split
- (1) Foot switch
- (1) Retaining Fork
- (1) Conduit Adapters - 2" (51 mm), 3" (76 mm),
- (1) 31?2" (89 mm), 4" (102 mm)
- (1) Tool box for the accessories
Condux 08674300S Features
- Two speed removable power pack
- 6500 pounds of pulling force at low speed
- Self Tailing Capstan for addes Stability
- Accepts all diameter rope
- Pivoting Arm
- Vertical pull from floor
- Vertical pull down from box
- Horizontal pull
- Horizontal Vault Pull
- Vertical Pull with 45 degree elbow
- Vertical overhead pull
- Horizontal pull over obstructions
- Heavy Duty Frame
- Extra pivoting arm for added versatility
- Portable and easy set-up
- Completely self-contained unit
Condux 08674300S Specifications
| PULLING FORCE | up to 6,500lbs. |
| PULLING SPEED | 39.2ft/min |
| PEAK POWER | 1.9 HP (1.42 kW) |
| GENERATOR | 4000 Watt Recommended* |
