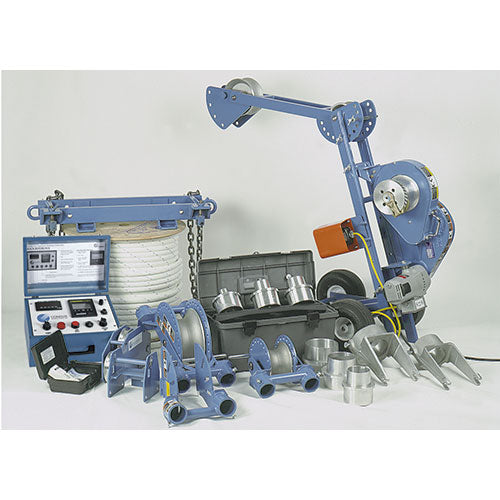

Condux 08674388S 110 Volt Standard Cableglider (Package 1) Split
Description
Description
Condux 08674388S Description
The Condux CableGlider STD Cable Puller Offers Portability and Ease of Set-Up in a Completely Self-Contained Unit to Adapt to a Variety of Pulling Situations. It Comes Equipped with a Two-Speed Removable Power Pack, Providing Up To 6,500 Pounds (28,912 N) of Pulling Force at Low Speed. Speed Changes Are No Problem with Just a Turn of a Dial. Design Features Include a Self-Tailing Capstan for Added Stability, a Pivoting Arm and a Foot Switch for Operator Convenience and Safety. Accepts All Diameter Rope (Self-Tailing Capstan Accepts 5/8" (16 mm) to 7/8" (22 mm) Rope Only).Comes with Split adapters.
Condux 08674388S Includes
- (1) 110 Volt Puller
- (1) Foot switch
- (1) Retaining Fork
- (1) Conduit Adapters - 2" (51 mm), 3" (76 mm)
- (1) 31?2" (89 mm), 4" (102 mm)
- (1) Tool box for the accessories
- (1) Standard Extension Frame
- (1) 600 ft. (183 m) of 5?8" (16 mm) double-braided rope
- (1) Floor/Conduit/Pole Mount Frame
- (1) 5" (127 mm) & 6" (152 mm) adapters w/retaining fork
- (1) Running Line Tensiometer with Chart Recorder
Condux 08674388S Features
- Two speed removable power pack
- 6500 pounds of pulling force at low speed
- Self Tailing Capstan for addes Stability
- Accepts all diameter rope
- Pivoting Arm
- Vertical pull from floor
- Vertical pull down from box
- Horizontal pull
- Horizontal Vault Pull
- Vertical Pull with 45 degree elbow
- Heavy Duty Frame
- Extra pivoting arm for added versatility
- Portable and easy set-up
- Completely self-contained unit
Condux 08674388S Specifications
| PULLING FORCE | up to 6,500lbs. |
| PULLING SPEED | 39.2ft/min |
| PEAK POWER | 1.9 HP (1.42 kW) |
| GENERATOR | 4000 Watt Recommended* |
