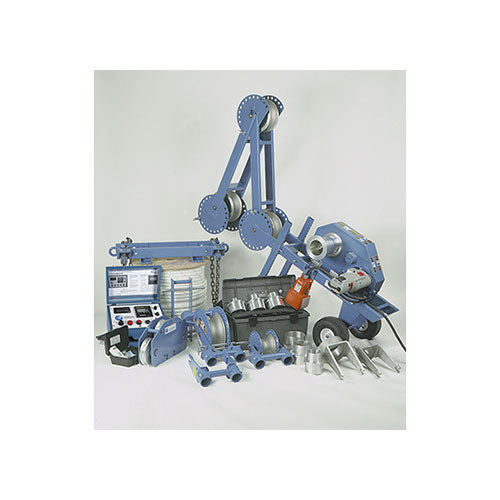

Condux 08674689S 110V Heavyduty Cableglider (Package 1) Split
Description
Description
Condux 08674689S Description
The Condux CableGlider HD is specially designed to provide maximum pulling power for longer runs in a completely self-contained unit. It offers fast set-up, portability and is easily adaptable for a variety of pulling situations. The removable power pack delivers up to 12,000 pounds (53,375 N) of pulling force at low speed—over 80% more than our STD puller. The two-speed motor pulls up to 30 feet per minute at high speed and up to 15 feet per minute at low speed. The CableGlider HD comes with a heavy-duty frame and extra pivoting arm. The front frame height can easily be adjusted with pins.
Condux 08674689S Includes
- (1) 110 Volt Puller with accessories
- (1) HD Extension Frame
- (1) 600 ft (183 m) of 5/8" (16 mm) double-braided rope
- (1) Floor/Conduit/Pole Mount Frame
- (1) 5" (127 mm) & 6" (152 mm) adapters w/retaining fork
- (1) Running Line Tensiometer w/ Data Recorder
Condux 08674689S Features
- Two speed removable power pack
- 12000 pounds of pulling force at low speed
- Self Tailing Capstan for addes Stability
- Accepts all diameter rope
- Second Pivoting Arm
- Vertical pull from floor
- Vertical pull down from box
- Horizontal pull
- Horizontal Vault Pull
- Vertical Pull with 45 degree elbow
- Vertical overhead pull
- Horizontal pull over obstructions
- Heavy duty frame
- Extra pivoting arm for added versatility
- Portable and easy set-up
- Completely self-contained unit
Condux 08674689S Specifications
| PULLING FORCE | Up to 12,000 lbs |
| PULLING SPEED | 40.9ft/min |
| PEAK POWER | 4.7 HP (3.50 kW) |
| GENERATOR | 8000 Watt Recommended* |
