Condux | SKU:
08677350
Condux 08677350 Running Line Tensiometer, Cableglider Std
Free Shipping
$10,720.50
$12,691.45
Unit price
/
Unavailable
Description
Description
Condux 08677350 Description

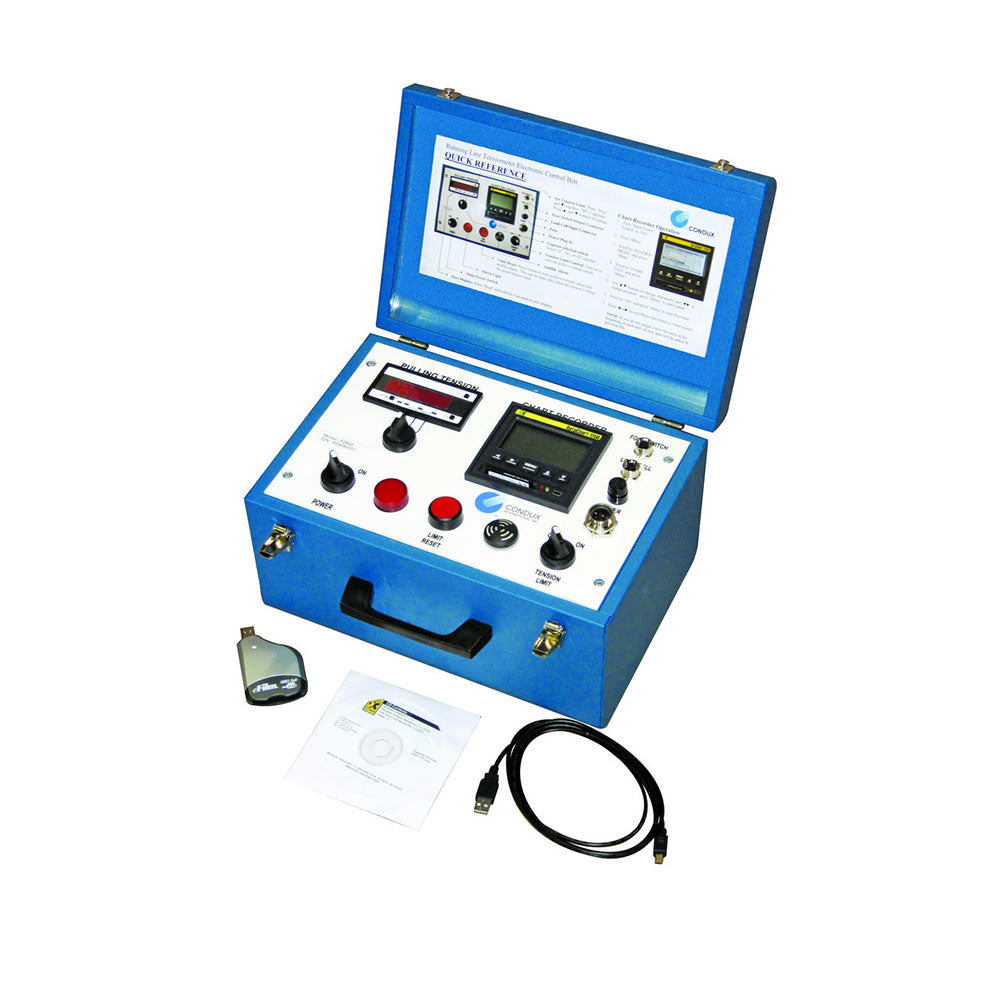

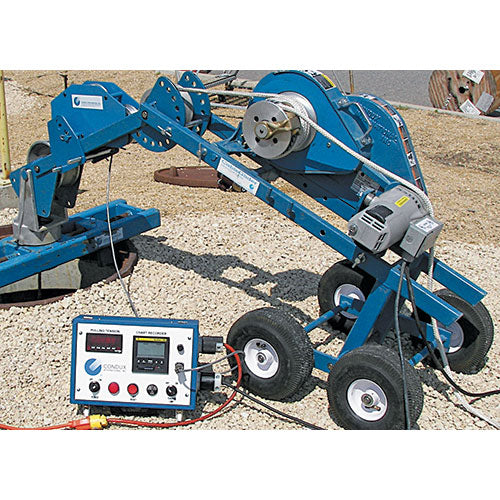

Condux Running Line Tensiometer used with Condux CableGlider® Cable Pullers will give accurate measurements of the force exerted on a cable as it is installed. It consists of a Mechanical Sensing Unit and the Electronic Control Box. The unit will accommodate pull tape and rope up to 7/8” diameter with an accuracy of ±5% of full scale. Measures loads of 0 to 6,500lbs(0 to 28,912 N) with an accuracy of ±325lbs(1,446N).
Condux 08677350 Includes
- (1) Mechanical Sensing Unit
- (1) Electrical Control Board
- (1) Load Cell and Cord
- (1) Mounting Hardware
- (1) Card Reader and software
Condux 08677350 Features
- Mechanical Sensing Unit Mounts easily to the cable puller frame with a mounting bracket and pin
- Condux Running Line Tensiometer`s sensing unit permits rope installation without disassembly of the unit.

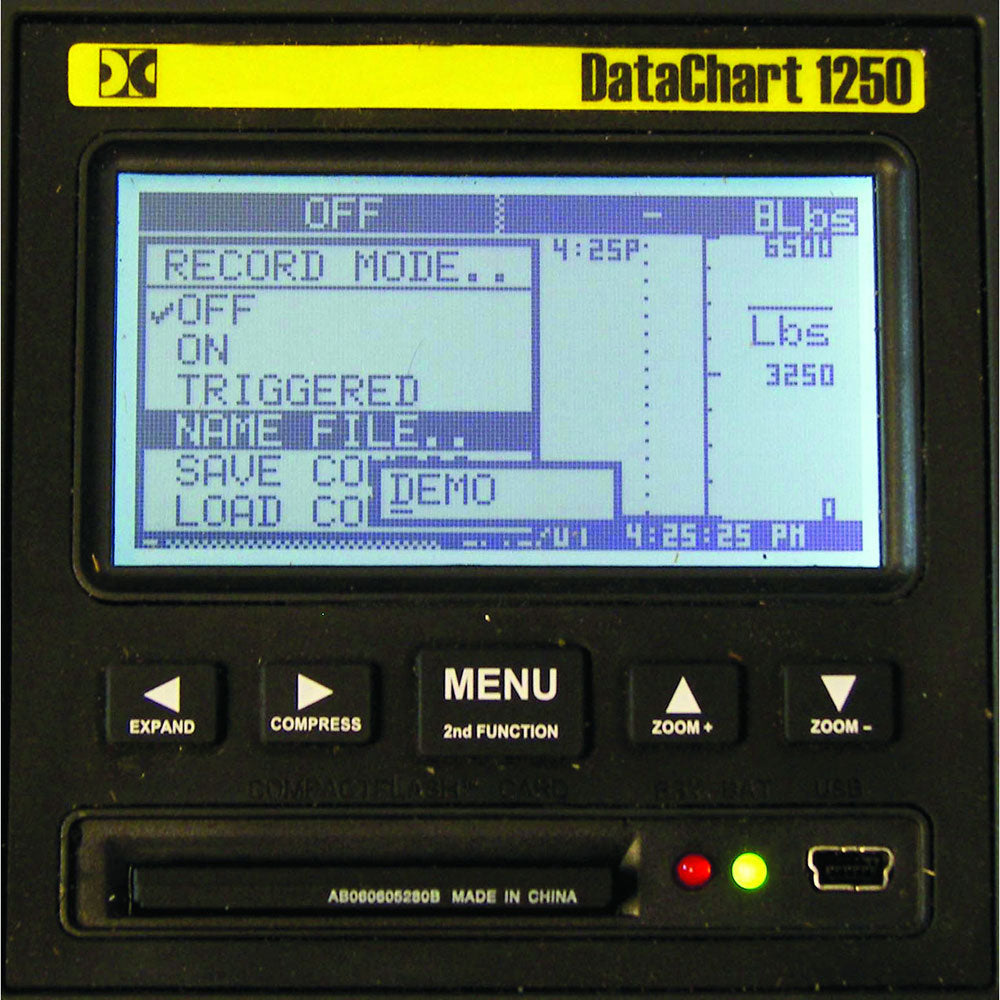

- Electronic Control Box features large LED Display and paperless recorder with trend display, compact flash card slot with a 64MB flash card and USB interface.
- A Programmable overload set point has both an audible and visual indication of an overload condition.
- The Electronical Control Box also has the capacity to disengage the cable puller if an overload occurs.
