Condux 08782004 Gulfstream 400 Fiber Optic Cable Blower - Mechanical
Description
Description
Condux 08782004 Description

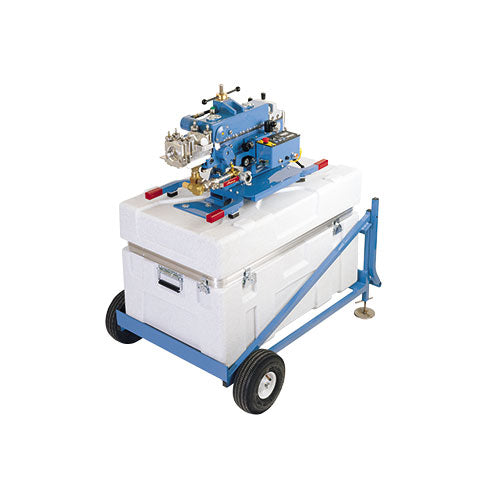

The Condux Gulfstream 400 Deluxe Fiber Optic Cable Blower features longer tractor feed grip area for less stress on the cable, and a manual cylinder on the tractor feed to better control down pressure. Condux’s patented traction control system shuts down the blower when problems with cable slippage or duct blockage are detected, adding safety to every job and preventing costly cable damage. Convenient tilting of the Condux Gulfstream 400 Deluxe Fiber Optic Cable Blower for ease of pouring in lubricant. Easily install cable into rollers, then close and you are ready to start.
Condux 08782004 Includes
- (1) SmallCase w/foam insert
- (1) Small Divided Case w/parts label
- (1) O-Ring Seal Kit
- (1) (2 Pin) Extension Cord
- (1) Canvas Bag
- (1) Venturi Air Plug(Seal Disk)
- (1) Capscrew Set (12-M04-07)
- (1) 5/8" X 600 lb Swivel (16 mm x 2,669 N)
- (1) Power Cord Assembly Lighter Plug
- (1) 20'(6 m) Hydraulic Hose Set
- (1) Wrench, 3/4"
- (1) Standard & Metric Hex Key Set
- (1) 3/8" Drive Ratchet
- (1) 9/16" Deep Well Socket
- (1) Pressure Regulator
- (1) Footage Counter
Condux 08782004 Features
- Speed and distance counter LCD read-out
- Hinged air block and conduit clamps
- Smooth and quiet belt tractor
- Convenient tilt capability allowing ease of puring in lubricant
- ECB prevents potential cable damage
- Able to blow fiber cable long distances
- Very fast
- Sensors front and rear to protect your cable throught install
- Total control of your fiber installation
- Easy to install cables into rollers
- Superior service and support
Condux 08782004 Specifications
| Duct OD | 1/2"-2" (10-51mm) |
| Fibre Cable OD | 0.23"-1.13" (5.8-28.7mm) |
| Average Distance~ | 6,500ft |
| Max Speed | 300ft/min |
| Weight | 104lbs |
| Push Force | 0-180lbs (778 N) |
| Air Pressure Requirements (PSI)* | 100-130 PSI |
| Air Pressure Requirements (BAR)* | 10-14 Bar |
| Flow Requirements (CFM)* | 185-500 CFM |
| Flow Requirements (CMM)* | 5-14 CMM |
