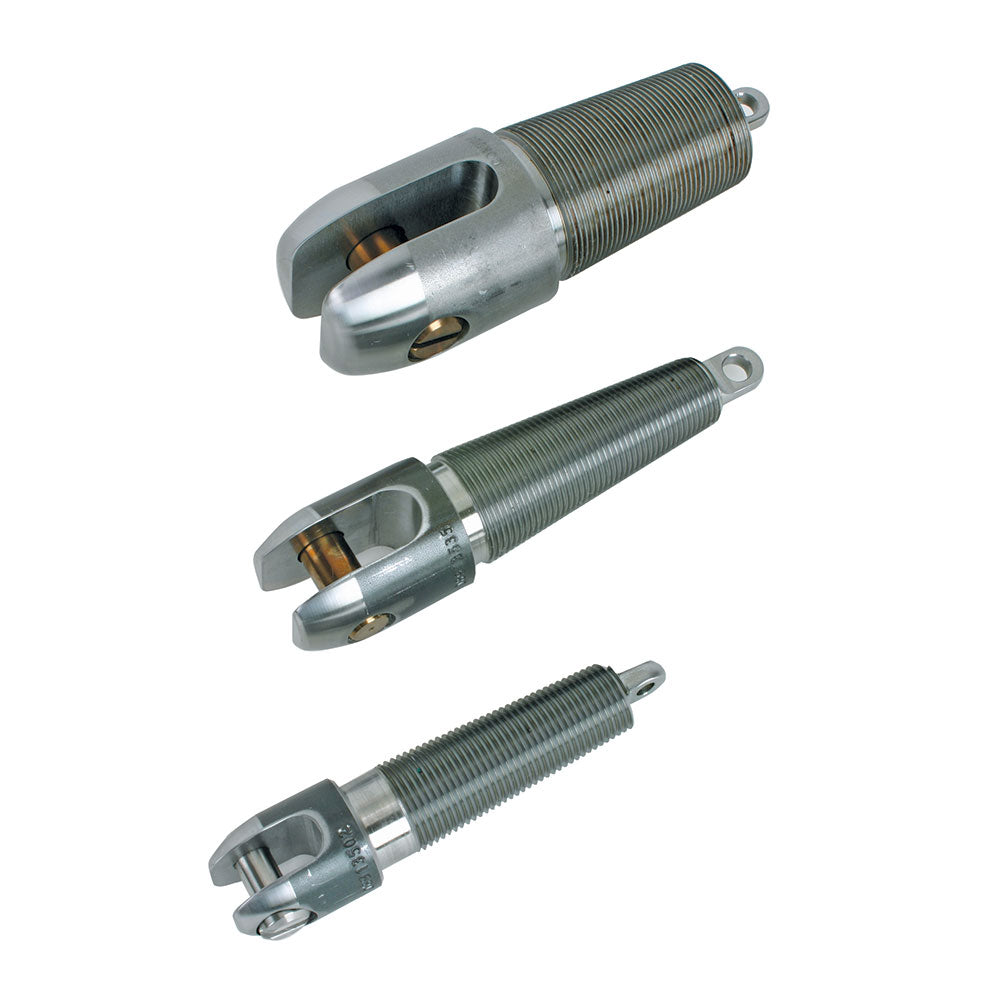

Condux 08914340 Clevis Head Innerduct Pulling Eye
$144.06
Unit price
/
Unavailable
Description
Description
Condux 08914340 Description
Same tapered threads as the standard innerduct pulling eye, these pulling eyes feature a slotted head with clevis pin to permit direct attachment to any Condux multiple pulling harness leg ends. When properly sized and installed, these eyes will not pull out of the innerduct until the pulling tensions have greatly exceeded the maximum pulling tensions recommended by the innerduct manufacturers.
Condux 08914340 Includes
- (1) Clevis Head Innerduct Pulling Eye
Condux 08914340 Specifications
| Nominal Size | 1.50" (38mm) |
| Innerduct ID Range | 1.37" - 1.68" (35-43mm) |
| Max OD | 2.00" (51mm) |
| Hole Diameter | 0.38" (10mm) |
| Slot Width | .75" (19mm) |
| Slot Depth | 1.78" (45mm) |
| Pin Diameter | .63" (16mm) |
| Pin Center | .72" (18mm) |
