Condux | SKU:
08917150

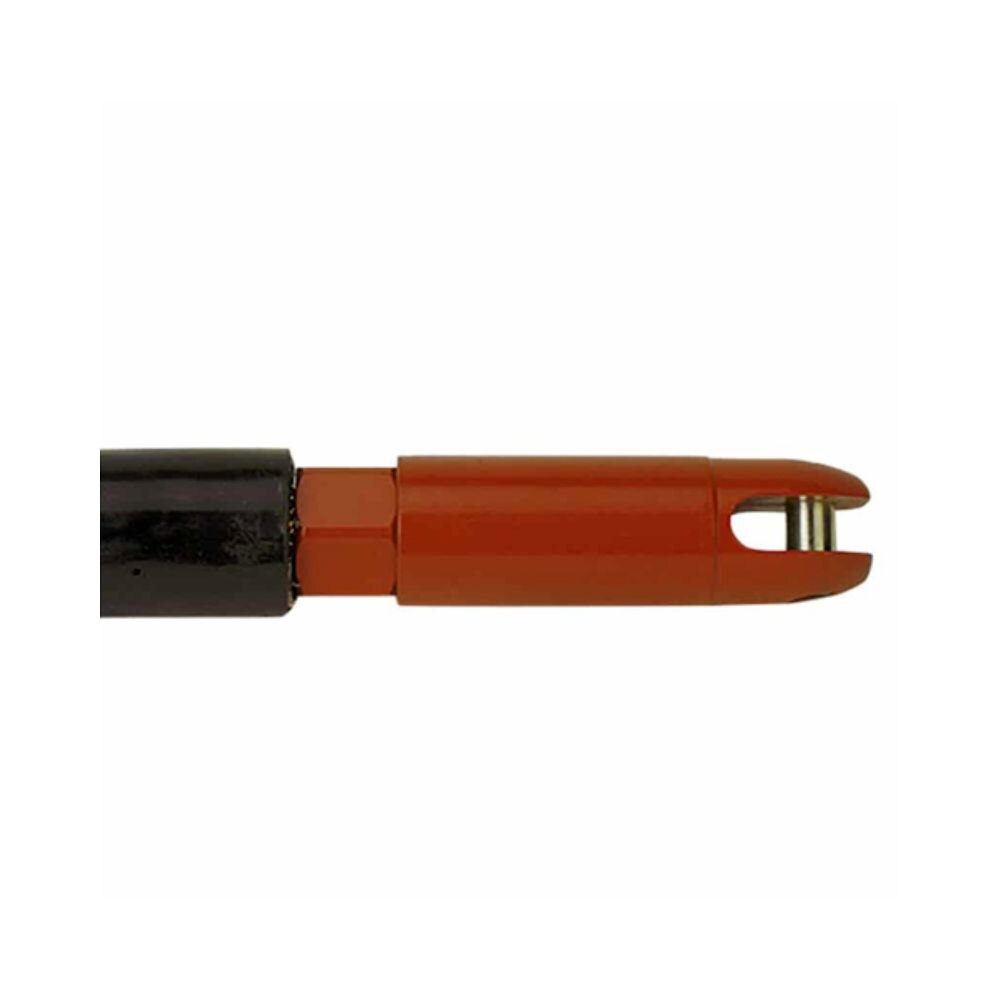

Condux 08917150 1000 kcmil Orange Clevis Head Reusable Power Pulling Eye
Free Shipping
$345.99
Unit price
/
Unavailable
Description
Description
Condux 08917150 Description
The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08917150 Includes
- (1) Clevis Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08917150 Features
- Slotted Head with Clevis Pin
- Will fit all Condux Pulling Harnesses
Condux 08917150 Specifications
| Part Number | 08917150 |
| Cable Size | 1000 kcmil |
| Color | Orange |
| Maximum Conductor Diameter | 1.152 in. (29 mm) |
| Max Eye OD (A) | 2.06 in. (52 mm) |
| Slot Width (B) | .75 in. (19 mm) |
| Slot Depth (C) | 1.78 in. (45 mm) |
| Pin Diameter (D) | .63 in. (16 mm) |
| Pin Center (E) | .72 in. (18 mm) |
| Replacement Plug Part Number | 08917123 |
| Load Rating | 15000 lbs (6804 kg) |
