Condux | SKU:
08917175

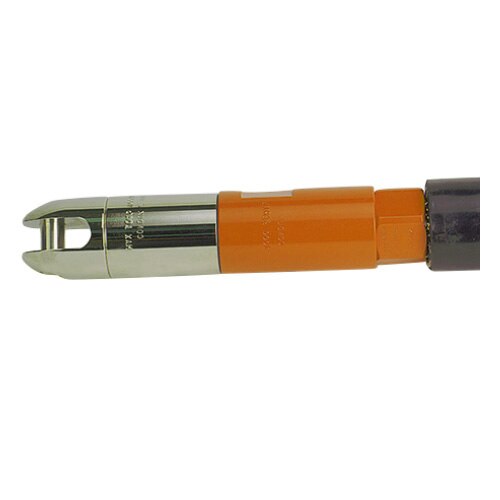

Condux 08917175 1000 kcmil Orange Swivel Head Power Pulling Eye
Free Shipping
$609.35
Unit price
/
Unavailable
Description
Description
Condux 08917175 Description
The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard reusable power pulling eyes and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08917175 Includes
- (1) 1000 kcmil Orange Swivel Head Power Pulling Eye
- (1) Sleeve Nut
- (1) Plug
Condux 08917175 Features
- Reusable
- Will fit all Condux pulling harnesses
Condux 08917175 Specifications
| Part Number | 08917175 |
| Cable Size | 1000 kcmil |
| Color | Orange |

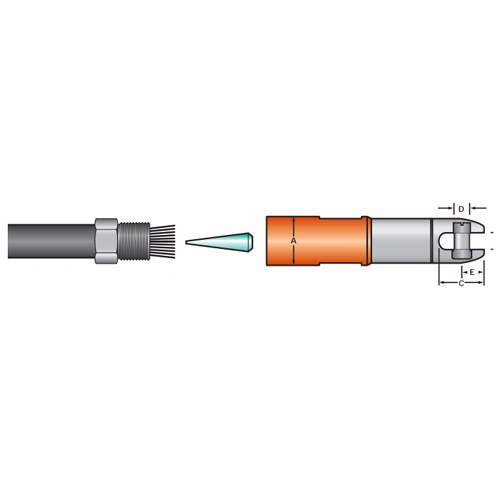

| Max Conductor Diameter | 1.152 in. (29 mm) |
| Max Eye OD (A) | 2.06 in. (52 mm) |
| Slot Width (B) | 0.75 in. (19 mm) |
| Slot Depth (C) | 1.78 in. (45 mm) |
| Pin Diameter (D) | 0.63 in. (16 mm) |
| Pin Center (E) | 0.72 in. (18 mm) |
| Replacement Plug | 08917123 |
| Load Rating | 15,000 lbs (6,804 kg) |
