Condux 08917350 700 kcmil Gray Clevis Head Reusable Power Pulling Eye
Free Shipping
$326.96
Unit price
/
Unavailable
Description
Description
Condux 08917350 Description

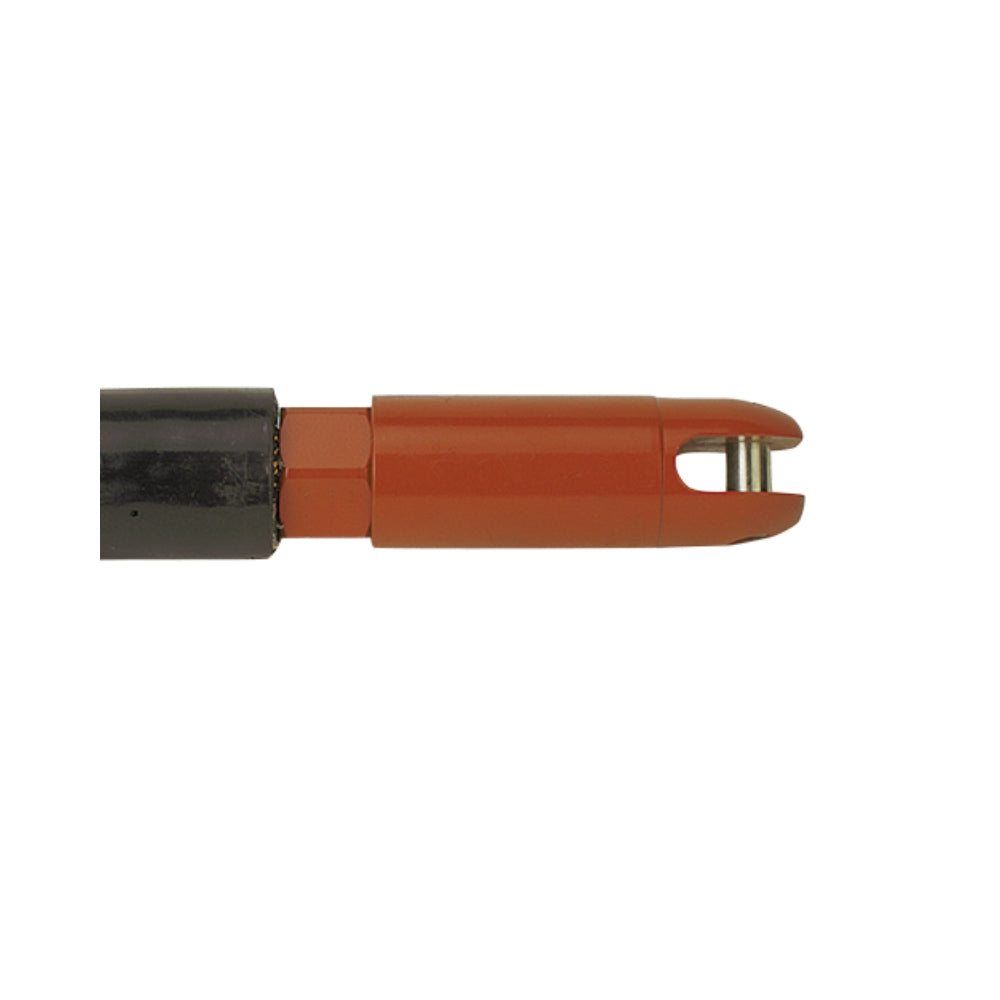

The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08917350 Includes
- (1) Clevis Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08917350 Features
- Slotted Head with Clevis Pin
- Will fit all Condux Pulling Harnesses
Condux 08917350 Specifications
| Part Number | 08917350 |
| Cable Size | 700 kcmil |
| Color | Gray |
| Maximum Conductor Diameter | .964 in. (24 mm) |
| Max Eye OD (A) | 1.75 in. (44 mm) |
| Slot Width (B) | .63 in. (16 mm) |
| Slot Depth (C) | 1.59 in. (40 mm) |
| Pin Diameter (D) | .56 in. (14 mm) |
| Pin Center (E) | .78 in. (20 mm) |
| Replacement Plug Part Number | 08917323 |
| Load Rating | 10000 lbs (4536 kg) |
