Condux | SKU:
08917375
Condux 08917375 700 kcmil Gray Swivel Head Power Pulling Eye
Free Shipping
$449.99
Unit price
/
Unavailable
Description
Description
Condux 08917375 Description

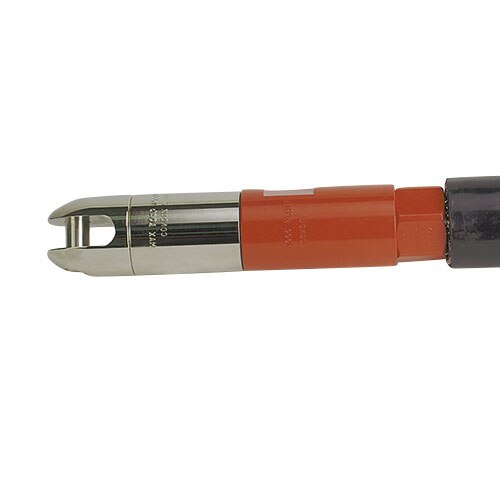

The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard reusable power pulling eyes and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08917375 Includes
- (1) Swivel Head
- (1) Sleeve Nut
- (1) Plug
Condux 08917375 Features
- Reusable
- Will fit all Condux pulling harnesses
Condux 08917375 Specifications

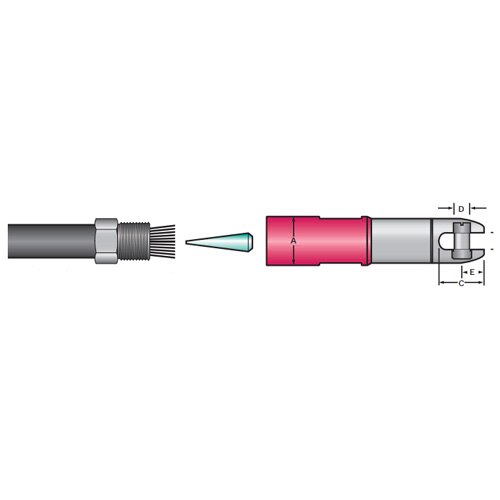

| Part Number | 08917375 |
| Cable Size | 700 kcmil |
| Color | Gray |
| Max Conductor Diameter | 0.964 in. (24 mm) |
| Max Eye OD (A) | 1.75 in. (44 mm) |
| Slot Width (B) | 0.63 in. (16 mm) |
| Slot Depth (C) | 1.59 in. (40 mm) |
| Pin Diameter (D) | 0.56 in. (14 mm) |
| Pin Center (E) | 0.78 in. (20 mm) |
| Replacement Plug | 08917323 |
| Load Rating | 10,000 lbs (4,536 kg) |
