Condux 08917450 Description

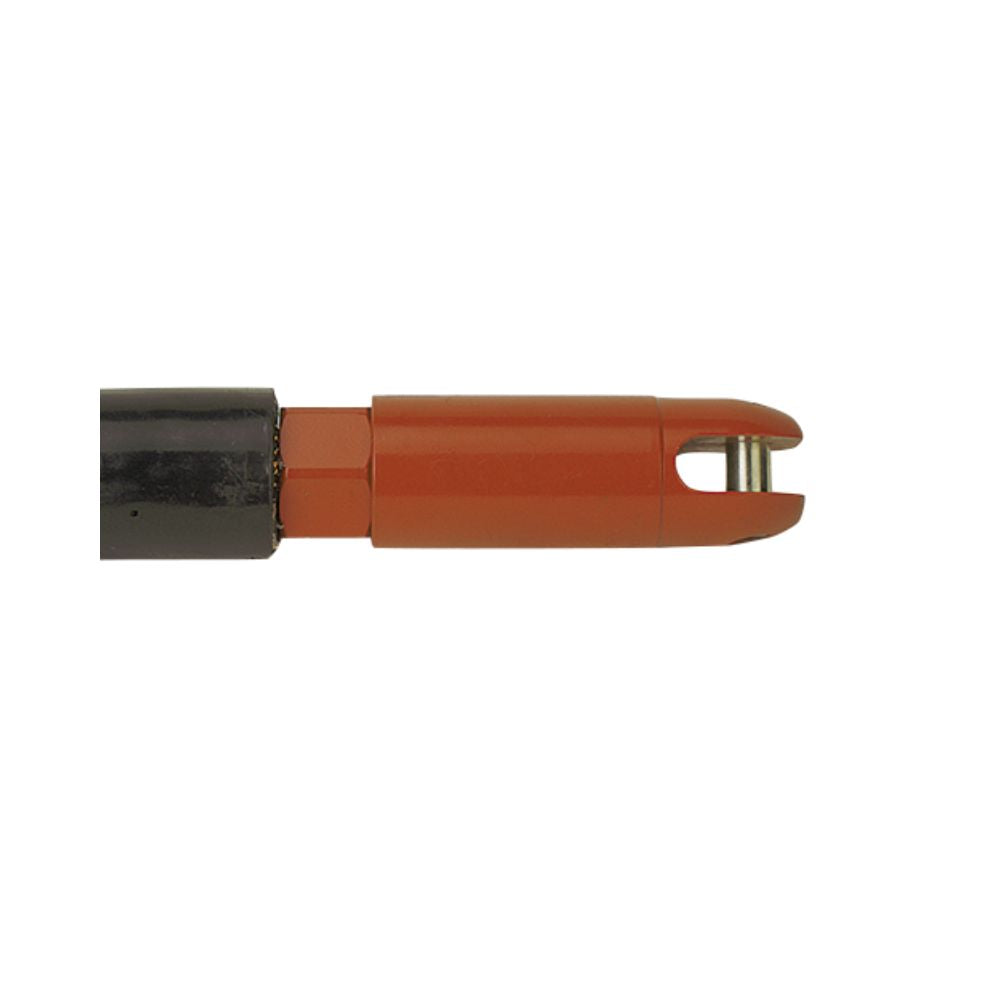

The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08917450 Includes
- (1) Clevis Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08917450 Features
- Slotted Head with Clevis Pin
- Will fit all Condux Pulling Harnesses
Condux 08917450 Specifications
| Part Number | 08917450 |
| Cable Size | 500 kcmil |
| Color | Yellow |
| Maximum Conductor Diameter | .813 in. (21 mm) |
| Max Eye OD (A) | 1.44 in. (37 mm) |
| Slot Width (B) | .59 in. (15 mm) |
| Slot Depth (C) | 1.41 in. (36 mm) |
| Pin Diameter (D) | .44 in. (11 mm) |
| Pin Center (E) | .59 in. (15 mm) |
| Replacement Plug Part Number | 08917423 |
| Load Rating | 7000 lbs (3175 kg) |
