Condux | SKU:
08917475
Condux 08917475 500 kcmil Yellow Swivel Head Power Pulling Eye
Free Shipping
$410.86
Unit price
/
Unavailable
Description
Description
Condux 08917475 Description

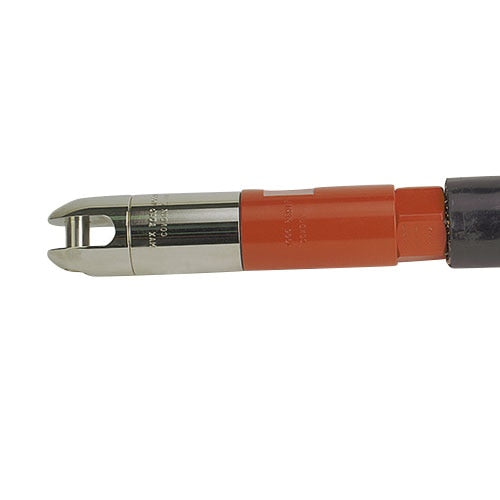

The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard reusable power pulling eyes and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08917475 Includes
- (1) Swivel Head
- (1) Sleeve Nut
- (1) Plug
Condux 08917475 Features
- Reusable
- Will fit all Condux pulling harnesses
Condux 08917475 Specifications
| Part Number | 08917475 |
| Cable Size | 500 kcmil |
| Color | Yellow |
| Max Conductor Diameter | 0.813 in. (21 mm) |

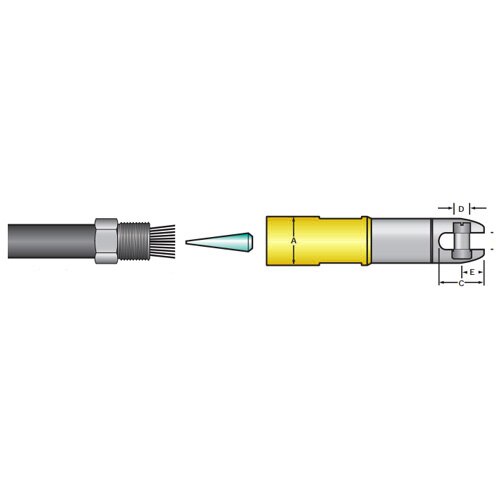

| Max Eye OD (A) | 1.44 in. (37 mm) |
| Slot Width (B) | .56 in. (14 mm) |
| Slot Depth (C) | 1.31 in. (33 mm) |
| Pin Diameter (D) | .44 in. (11 mm) |
| Pin Center (E) | .56 in. (14 mm) |
| Replacement Plug | 08917423 |
| Load Rating | 10,000 lbs (4,536 kg) |
