Condux 08917575 Description

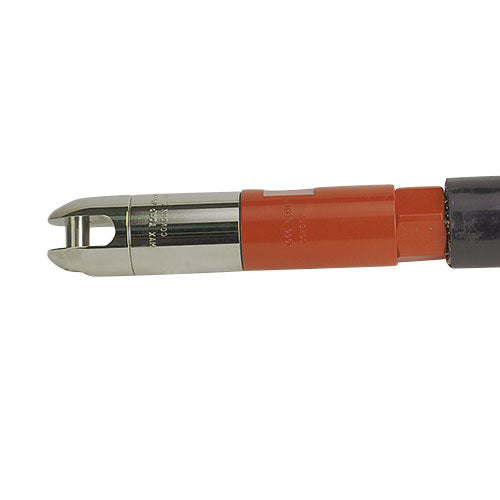

The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard reusable power pulling eyes and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08917575 Includes
- (1) Swivel Head
- (1) Sleeve Nut
- (1) Plug
Condux 08917575 Features
- Reusable
- Will fit all Condux pulling harnesses
Condux 08917575 Specifications

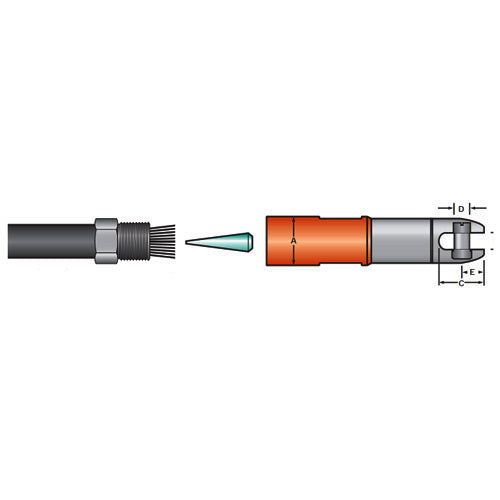

| Part Number | 08917575 |
| Cable Size | 350 kcmil |
| Color | White |
| Max Conductor Diameter | 0.681 in. (17 mm) |
| Max Eye OD (A) | 1.25 in. (32 mm) |
| Slot Width (B) | 0.56 in. (14 mm) |
| Slot Depth (C) | 1.34 in. (34 mm) |
| Pin Diameter (D) | 0.38 in. (10 mm) |
| Pin Center (E) | 0.59 in. (15 mm) |
| Replacement Plug | 08917523 |
| Load Rating | 5,000 lbs (2,268 kg) |
Toolup Part # :
92486
