Condux | SKU:
08917750
Condux 08917750 1750 kcmil Yellow Clevis Head Power Pulling Eye
Free Shipping
$565.39
Unit price
/
Unavailable
Description
Description
Condux 08917750 Description

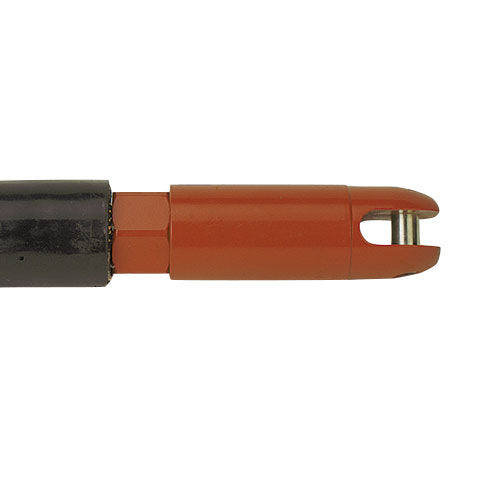

The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08917750 Includes
- (1) Clevis Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08917750 Features
- Will fit 3/8"" (9.5 mm) and 1/2"" (13 mm) cable pulling harnesses
Condux 08917750 Specifications
| Part Number | 08917750 |
| Cable Size | 1750 kcmil |
| Color | Yellow |

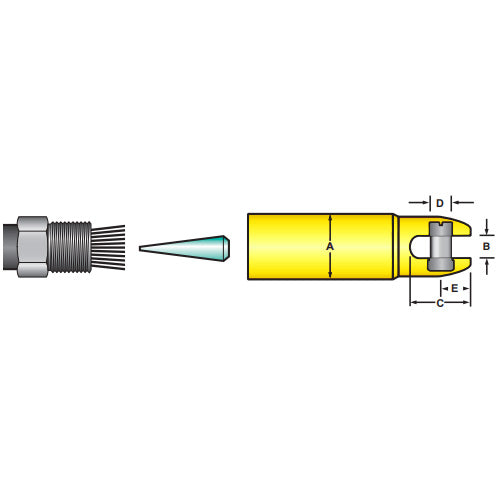

| Maximum Conductor Diameter | 1.526 in. (39 mm) |
| Max Eye OD (A) | 2.50 in. (64 mm) |
| Slot Width (B) | 1.00 in. (25 mm) |
| Slot Depth (C) | 2.80 in. (71 mm) |
| Pin Diameter (D) | 0.88 in. (22 mm) |
| Pin Center (E) | 1.23 in. (31 mm) |
| Replacement Plug Part Number | 08917723 |
| Load Rating | 25,000 lbs (11,340 kg) |
