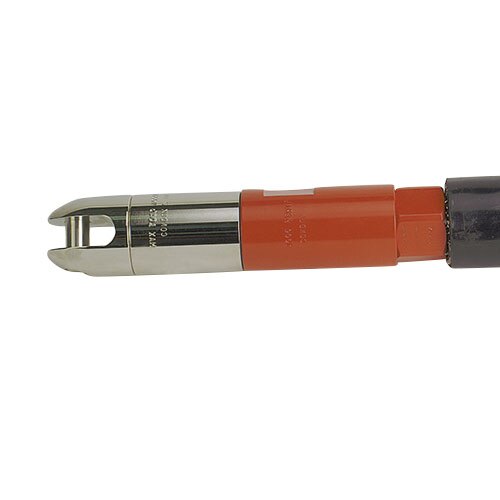

Condux 08917775 Reusable Power Pulling Eye, Swivel Head 1750kcmil Yellow
Free Shipping
$944.99
Unit price
/
Unavailable
Description
Description
Condux 08917775 Description
The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard Reusable Power Pulling Eye and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08917775 Includes
- (1) Reusable Power Pulling Eye, Swivel Head 1750kcmil Yellow
Condux 08917775 Features
- Will fit 13/8" (9 mm) & 1/2" (13 mm) cable pulling harnesses
Condux 08917775 Specifications
| Cable Size | 1750 kcmil |
| Color | Yellow |
| Max Conductor Diameter | 1.526" |
| Max Eye OD | 2.50" |
| Slot Width | 1.00" |
| Slot Depth | 2.80" |
| Pin Diameter | 0.88" |
| Pin Center | 0.72" |
| Load Rating | 15,000 lbs |
