Condux | SKU:
08917850
Condux 08917850 1250 kcmil Blue Clevis Head Power Pulling Eye
Free Shipping
$546.80
Unit price
/
Unavailable
Description
Description
Condux 08917850 Description

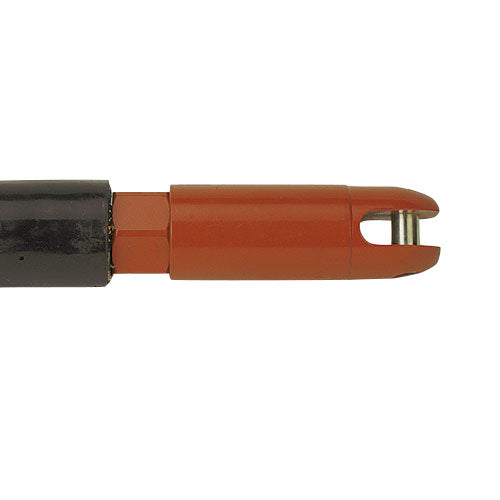

The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08917850 Includes
- (1) Clevis Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08917850 Features
- Will fit all Condux pulling harnesses
Condux 08917850 Specifications
| Part Number | 08917850 |
| Cable Size | 1250 kcmil |
| Color | Blue |
| Maximum Conductor Diameter | 1.289 in. (33 mm) |

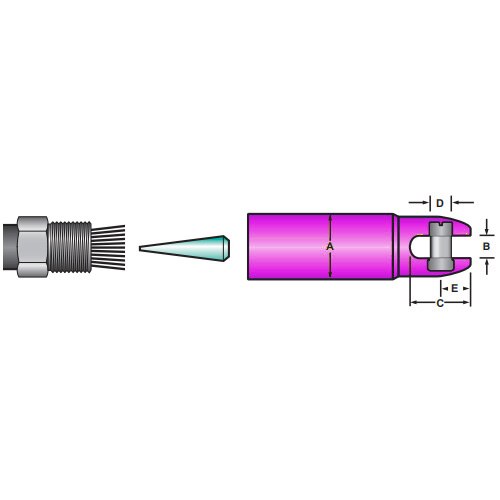

| Max Eye OD (A) | 2.25 in. (57 mm) |
| Slot Width (B) | .75 in. (19 mm) |
| Slot Depth (C) | 1.78 in. (45 mm) |
| Pin Diameter (D) | .63 in. (16 mm) |
| Pin Center (E) | .72 in. (18 mm) |
| Replacement Plug Part Number | 08917823 |
| Load Rating | 15,000 lbs (6,804 kg) |
