Condux 08917875 Reusable Power Pulling Eye, Swivel Head 1250kcmil Blue
Free Shipping
$713.99
Unit price
/
Unavailable
Description
Description
Condux 08917875 Description

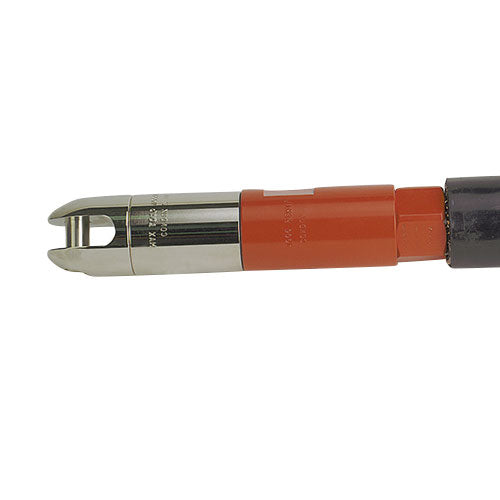

The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard Reusable Power Pulling Eye and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08917875 Includes
- (1) Reusable Power Pulling Eye, Swivel Head 1250kcmil Blue
Condux 08917875 Features
- Will fit all Condux cable pulling harnesses
Condux 08917875 Specifications
| Cable Size | 1250 kcmil |
| Color | Blue |
| Max Conductor Diameter | 1.289" |
| Max Eye OD | 2.25" |
| Slot Width | 0.75" |
| Slot Depth | 1.78" |
| Pin Diameter | 0.63" |
| Pin Center | 0.72" |
| Load Rating | 15,000 lbs |
