Description
Description
Condux 08917975 Includes
- (1) Reusable Power Pulling Eye, Swivel Head 1500kcmil Black
Condux 08917975 Features

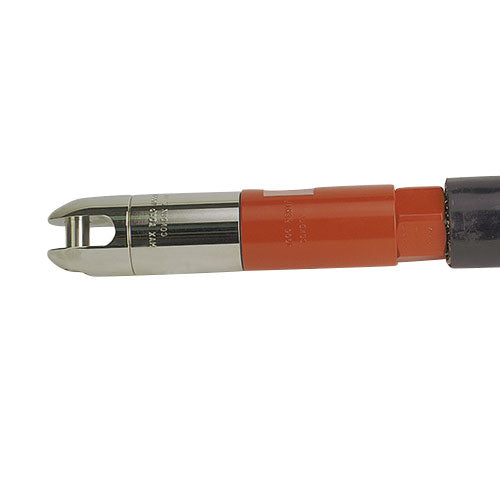

- Will fit 1/8" (3 mm) & 1/4" (6 mm) cable pulling harnesses The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard Reusable Power Pulling Eye and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08917975 Specifications
| Cable Size | 1500 kcmil |
| Color | Black |
| Max Conductor Diameter | 1.412" |
| Max Eye OD | 2.38" |
| Slot Width | 0.75" |
| Slot Depth | 1.78" |
| Pin Diameter | 0.63" |
| Pin Center | 0.72" |
| Load Rating | 15,000 lbs |
Toolup Part # :
92497
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
