Condux | SKU:
08918050

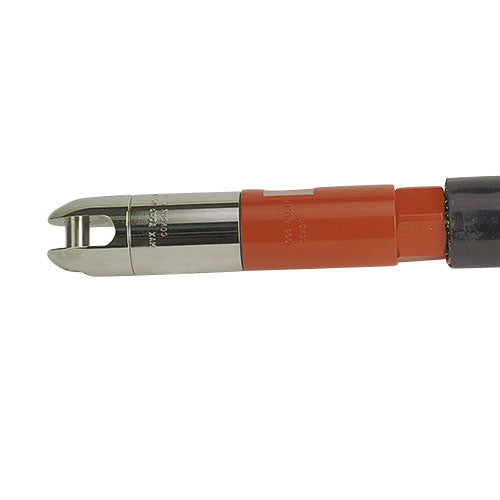

Condux 08918050 Reusable Power Pulling Eye, Clevis Head 2000kcmil RED
Free Shipping
$851.83
Unit price
/
Unavailable
Description
Description
Condux 08918050 Description
The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08918050 Includes
- (1) Reusable Power Pulling Eye, Clevis Head 2000kcmil RED
Condux 08918050 Features
- Will fit 3/8" (19 mm) & 1/2" (13 mm) cable pulling harness
Condux 08918050 Specifications
| Cable Size | 2000 kcmil |
| Color | Red |
| Max Conductor Diameter | 1.601" |
| Max Eye OD | 2.50" |
| Slot Width | 1.00" |
| Slot Depth | 2.80" |
| Pin Diameter | 0.88" |
| Pin Center | 1.23" |
| Load Rating | 25,000 lbs |
