Condux | SKU:
08918075

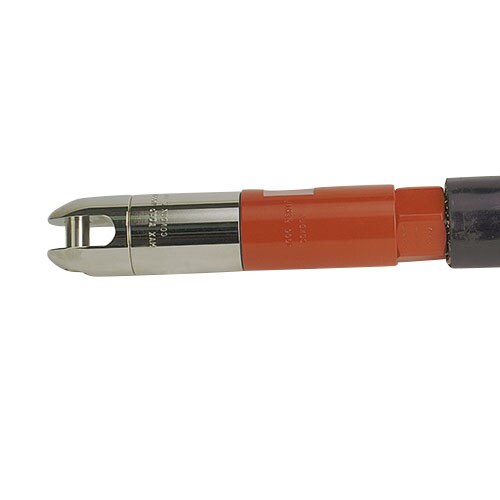

Condux 08918075 Reusable Power Pulling Eye, Swivel Head 2000kcmil Red
Free Shipping
$1,202.79
Unit price
/
Unavailable
Description
Description
Condux 08918075 Description
The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard Reusable Power Pulling Eye and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08918075 Includes
- (1) Reusable Power Pulling Eye, Swivel Head 2000kcmil Red
Condux 08918075 Features
- Will fit 3/8" (19 mm) & 1/2" (13 mm) cable pulling harness
Condux 08918075 Specifications
| Cable Size | 2000 kcmil |
| Color | Red |
| Max Conductor Diameter | 1.601" |
| Max Eye OD | 2.50" |
| Slot Width | 1.00" |
| Slot Depth | 2.80" |
| Pin Diameter | 0.88" |
| Pin Center | 1.23" |
| Load Rating | 25,000 lbs |
