Condux 08918350 400 kcmil Black Clevis Head Reusable Power Pulling Eye
Free Shipping
$275.95
Unit price
/
Unavailable
Description
Description
Condux 08918350 Description

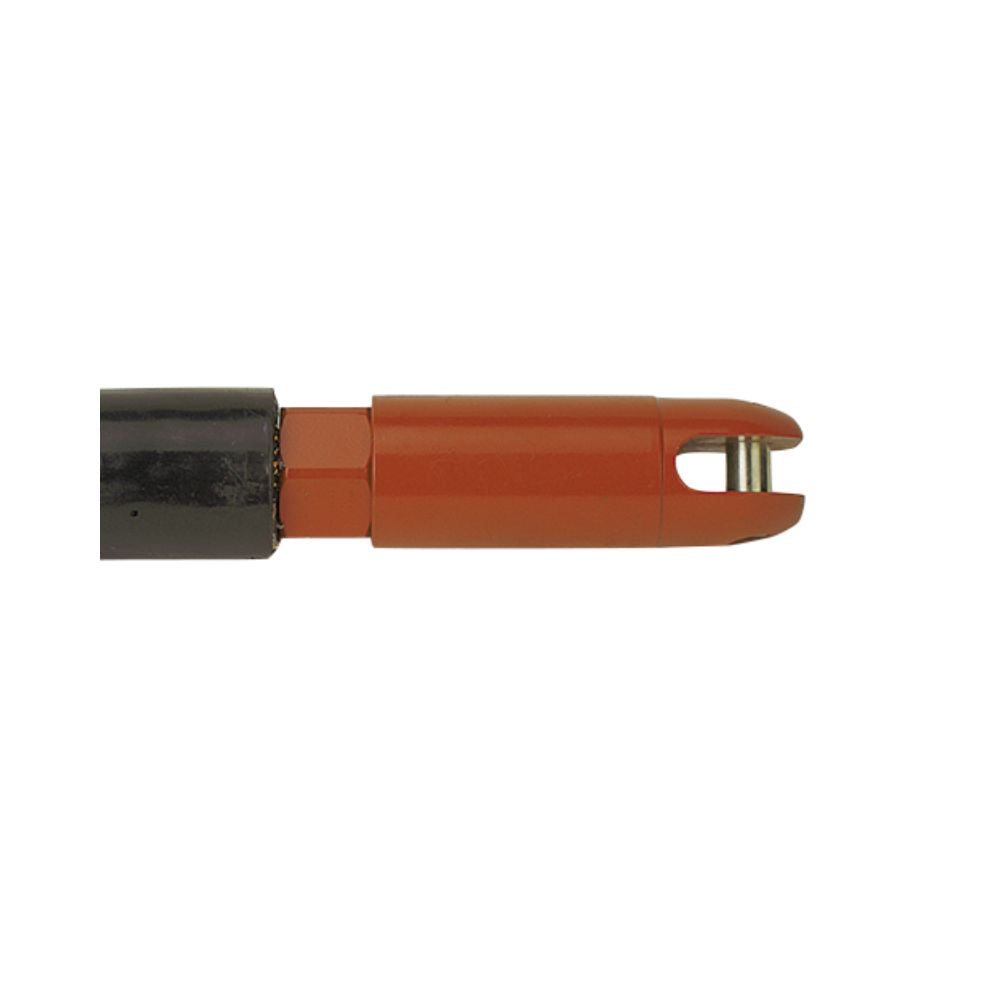

The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08918350 Includes
- (1) Clevis Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08918350 Features
- Slotted Head with Clevis Pin
- Will fit the 1/8" (3 mm) and 1/4" (6 mm) cable pulling harnesses
Condux 08918350 Specifications
| Part Number | 08918350 |
| Cable Size | 400 kcmil |
| Color | Black |
| Maximum Conductor Diameter | .713 in. (18 mm) |
| Max Eye OD (A) | 1.44 in. (37 mm) |
| Slot Width (B) | .56 in. (14 mm) |
| Slot Depth (C) | 1.40 in. (36 mm) |
| Pin Diameter (D) | .44 in. (11 mm) |
| Pin Center (E) | .59 in. (15 mm) |
| Replacement Plug Part Number | 08917523 |
| Load Rating | 5000 lbs (2268 kg) |
