Condux | SKU:
08918430

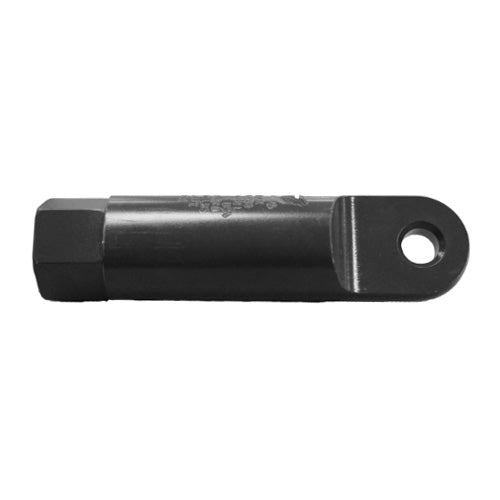

Condux 08918430 3000 kcmil Gray Standard Head Power Pulling Eye
Free Shipping
$580.93
$595.45
Unit price
/
Unavailable
Description
Description
Condux 08918430 Description

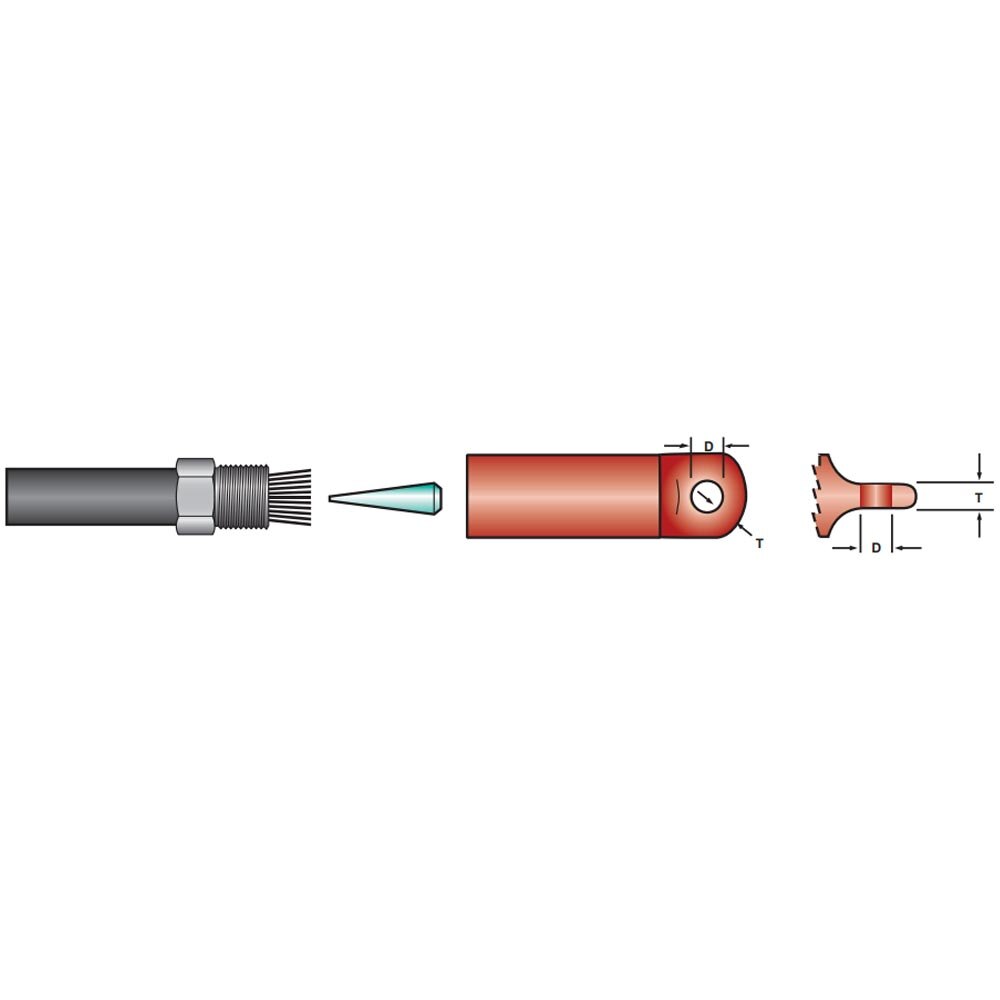

The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
Condux 08918430 Includes
- (1) 3000 kcmil Gray Standard Head Power Pulling Eye
- (1) Eye Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08918430 Specifications
| Part Number | 08918430 |
| Cable Size | 3000 kcmil |
| Color | Gray |
| Max Conductor Diameter | 2.030 in. (52 mm) |
| Max Eye OD | 4.000 in. (102 mm) |
| Hole Diameter (D) | 0.88 in. (22 mm) |
| Eye Thickness (T) | .94 in. (24 mm) |
| Replacement Plug | 08918423 |
| Working Load | 26,000 lbs (115.6 kn) |
