Condux | SKU:
08918450

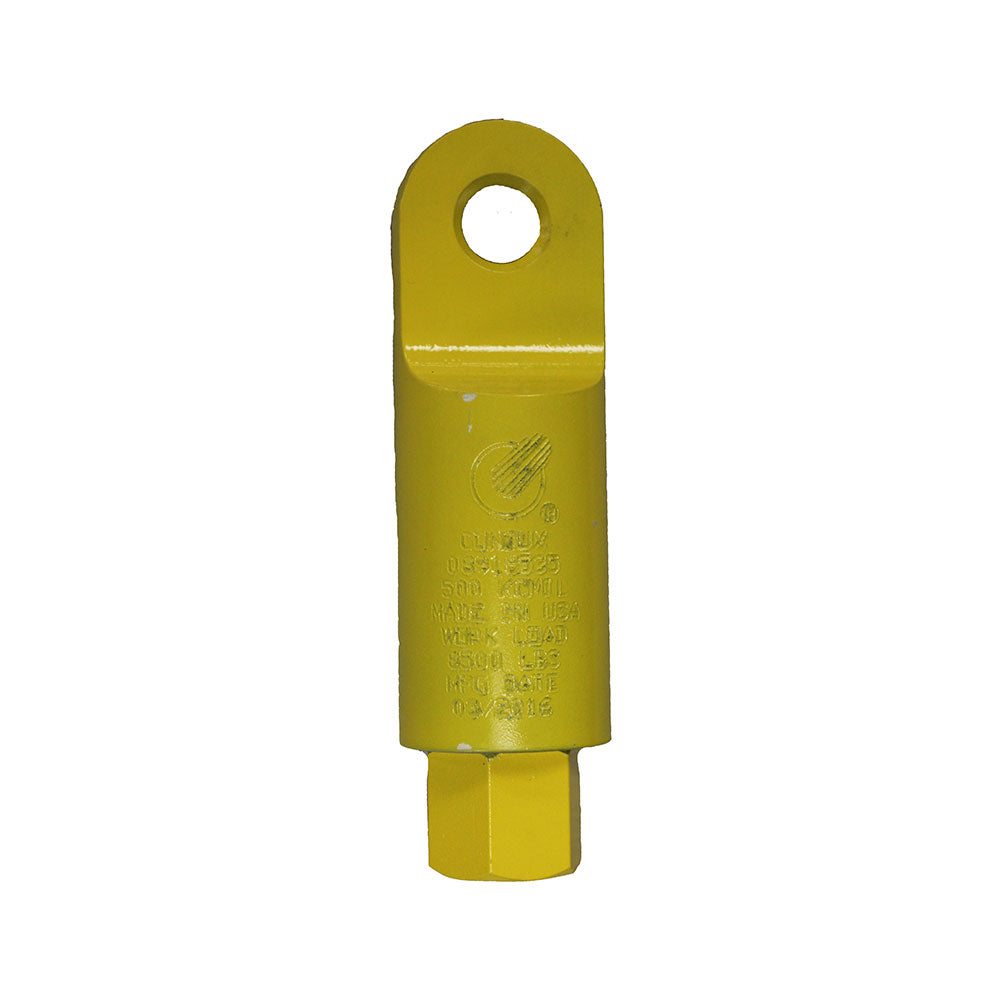

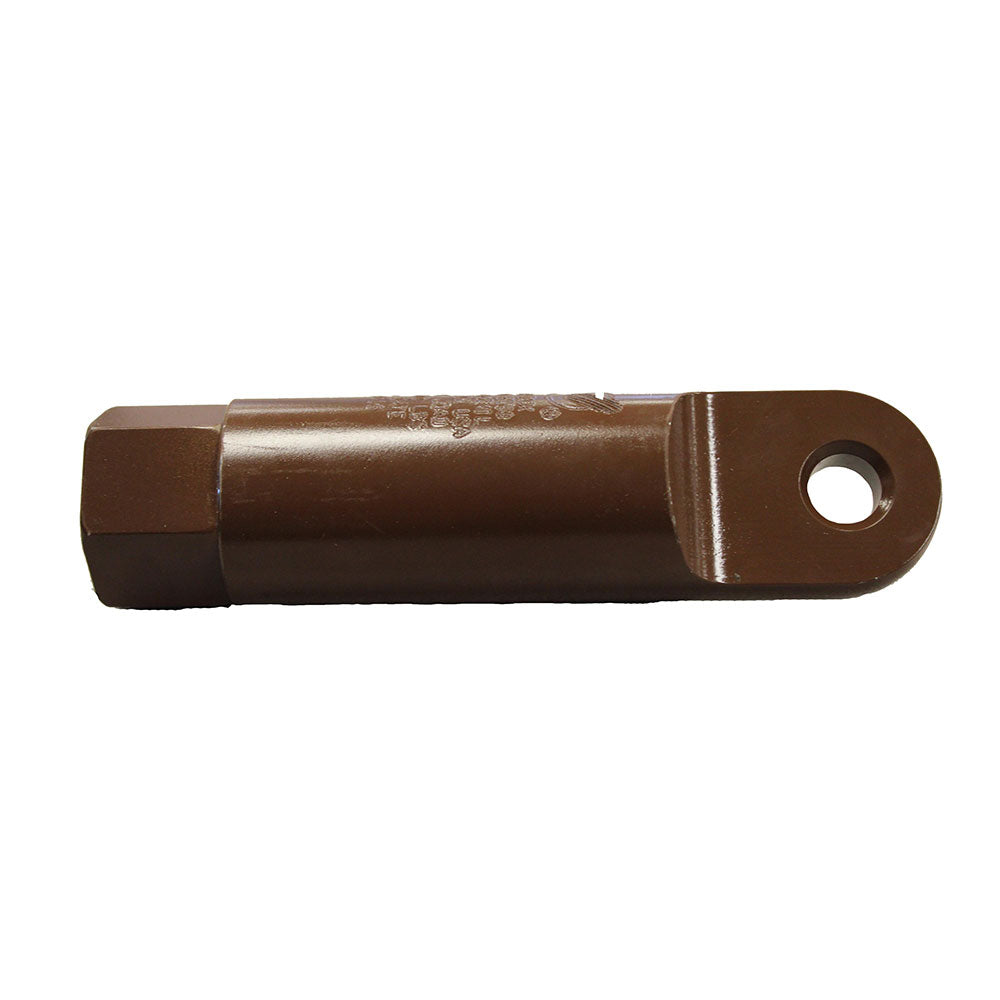

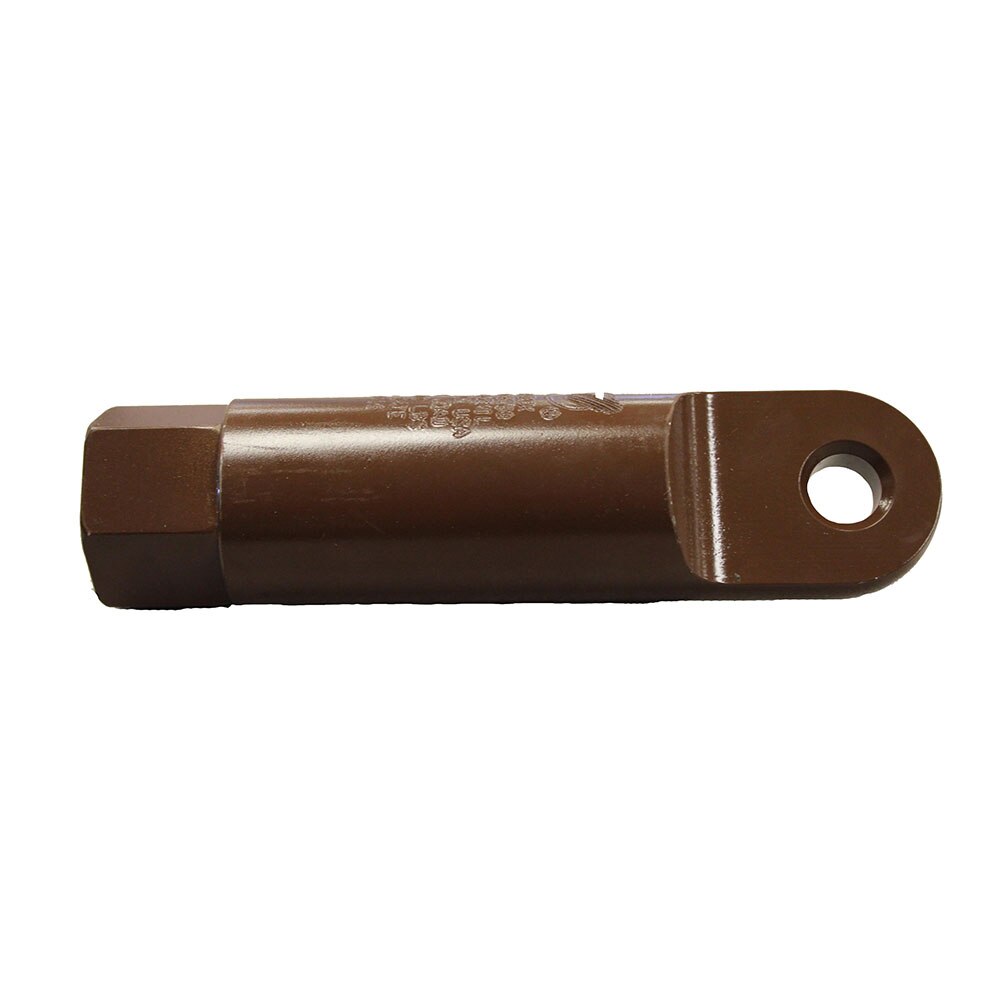

Condux 08918450 Reusable Power Pulling Eye, Standard Head 4000 kcmil Yellow
Free Shipping
$686.82
Unit price
/
Unavailable
Description
Description
Condux 08918450 Includes
- (1) Reusable Power Pulling Eye, Standard Head 4000 kcmil Yellow
Condux 08918450 Specifications
| Cable Size | 4000 kcmil |
| Color | Yellow |
| Max Conductor Diameter | 2.220" |
| Max Eye OD | 4.000" |
| Hole Diameter | 1.25" |
| Eye Thickness | 1.50" |
| Replacement Plug | 08918423 |
| Working Load | 42,500The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug. |
