Condux | SKU:
08918505

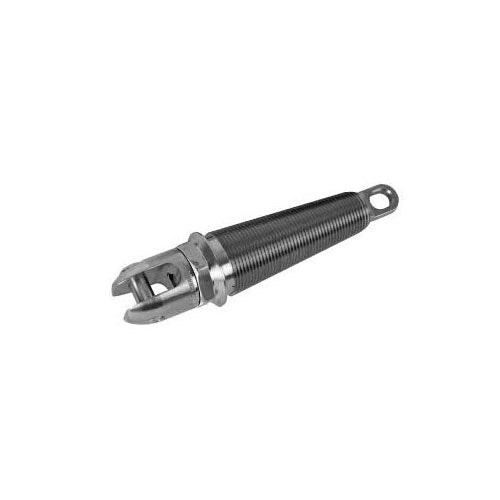

Condux 08918505 Reusable Power Pulling Eyes, Standard Head
$218.76
Unit price
/
Unavailable
Description
Description
Condux 08918505 Description
The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug
Condux 08918505 Includes
- (1) Reusable Power Pulling Eyes, Standard Head
Condux 08918505 Specifications
| Cable Size | 2/0 AWG |
| Color | Black |
| Max Conductor Diameter | 0.431" (11mm) |
| Max Eye OD | 1.250" (32mm) |
| Hole Diameter | 0.50" (13mm) |
| Eye Thickness | 0.34" (9mm) |
| Replacement Plug | 08960823 |
| Working Load | 6,500 lbs |
