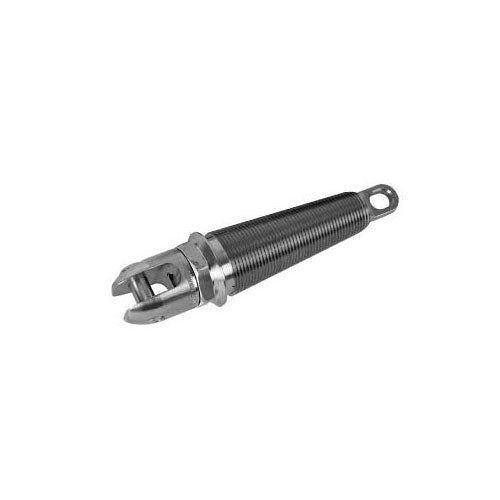

Condux 08918515 Reusable Power Pulling Eyes, Standard Head
Free Shipping
$204.93
Unit price
/
Unavailable
Description
Description
Condux 08918515 Description
The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
Condux 08918515 Includes
- (1) Reusable Power Pulling Eyes, Standard Head
Condux 08918515 Specifications
| Cable Size | 4/0 AWG |
| Color | Green |
| Max Conductor Diameter | 0.531" (13mm) |
| Max Eye OD | 1.250" (32mm) |
| Hole Diameter | 0.50" (13mm) |
| Eye Thickness | 0.34" (9mm) |
| Replacement Plug | 08917423 |
| Working Load | 6,500 lbs |
