Condux | SKU:
08918520

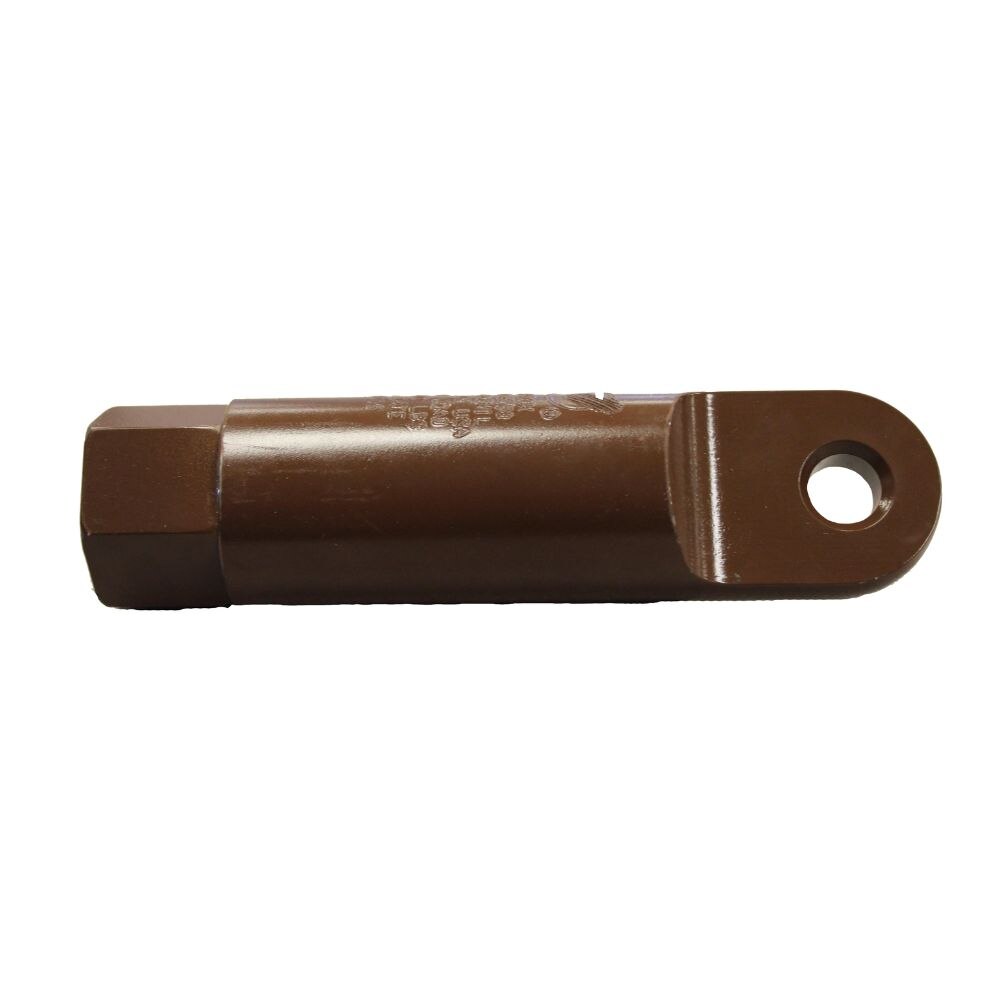

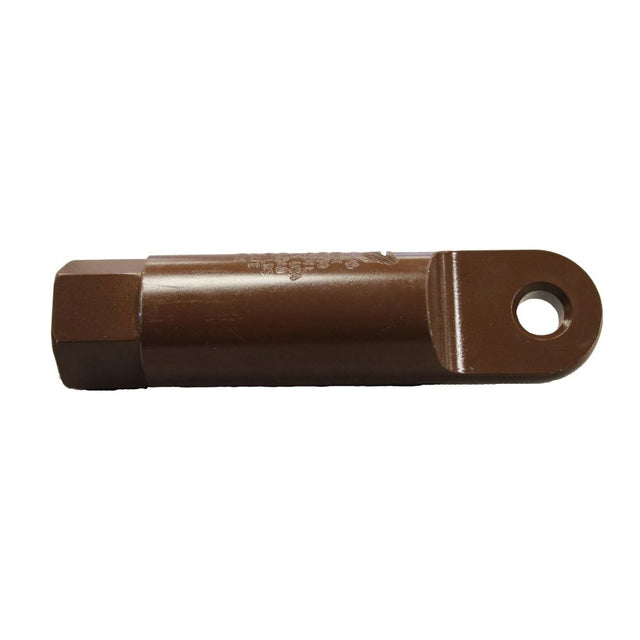

Condux 08918520 250 kcmil Blue Standard Head Reusable Power Pulling Eye
Free Shipping
$259.81
Unit price
/
Unavailable
Description
Description
Condux 08918520 Description
The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
Condux 08918520 Includes
- (1) Eye Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08918520 Specifications
| Part Number | 08918520 |
| Cable Size | 250 kcmil |
| Color | Blue |
| Maximum Conductor Diameter | .640 in. (16 mm) |
| Max Eye OD | 1.250 in. (32 mm) |
| Hole Diameter (D) | .63 in. (16 mm) |
| Eye Thickness (T) | .50 in. (13 mm) |
| Replacement Plug Part Number | 08960323 |
| Working Load | 6,500 lbs (28.9 kn) |
