Condux | SKU:
08918530

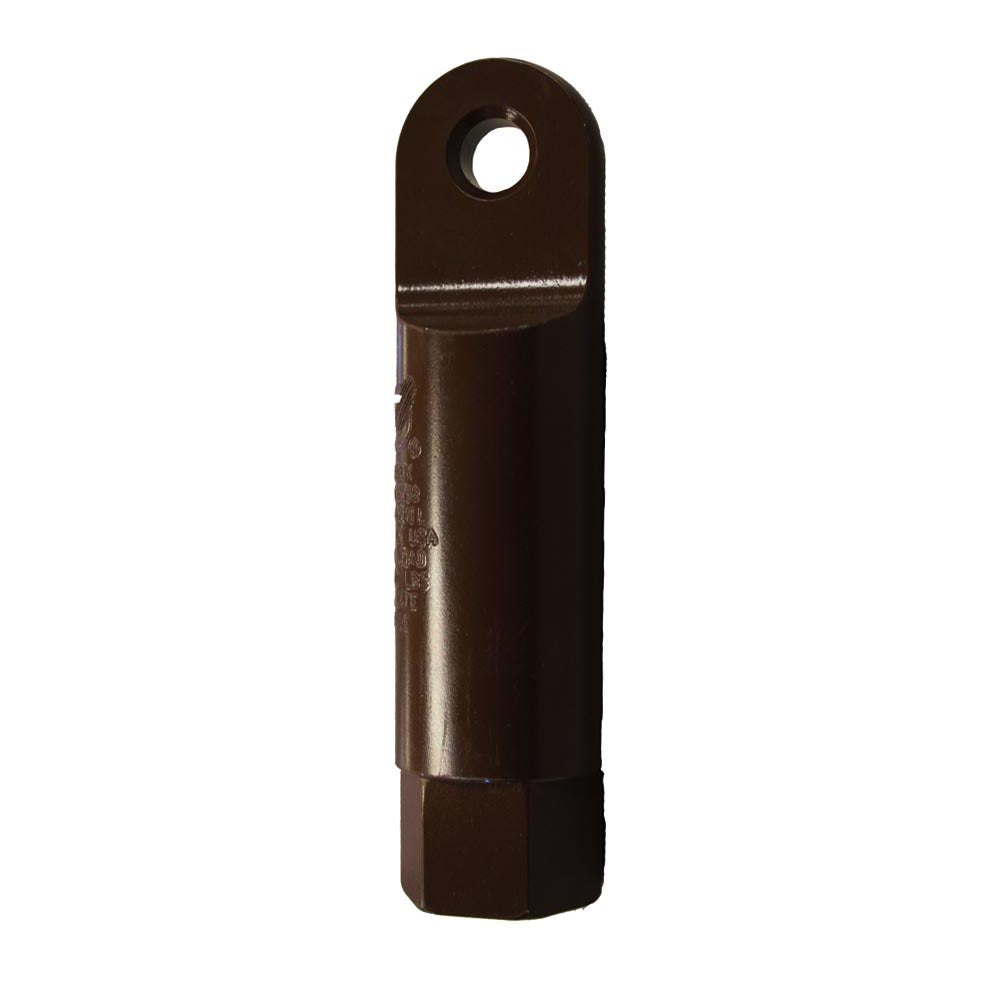

Condux 08918530 400 kcmil Black Standard Head Power Pulling Eye
Free Shipping
$347.18
Unit price
/
Unavailable
Description
Description
Condux 08918530 Description
The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
Condux 08918530 Includes
- (1) Eye Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08918530 Features
- Reusable Power Pulling Eye
- Standard Head
Condux 08918530 Specifications
| Part Number | 08918530 |
| Cable Size | 400 kcmil |
| Color | Black |
| Maximum Conductor Diameter | .750 in. (18 mm) |
| Max Eye OD | 1.880 in. (48 mm) |

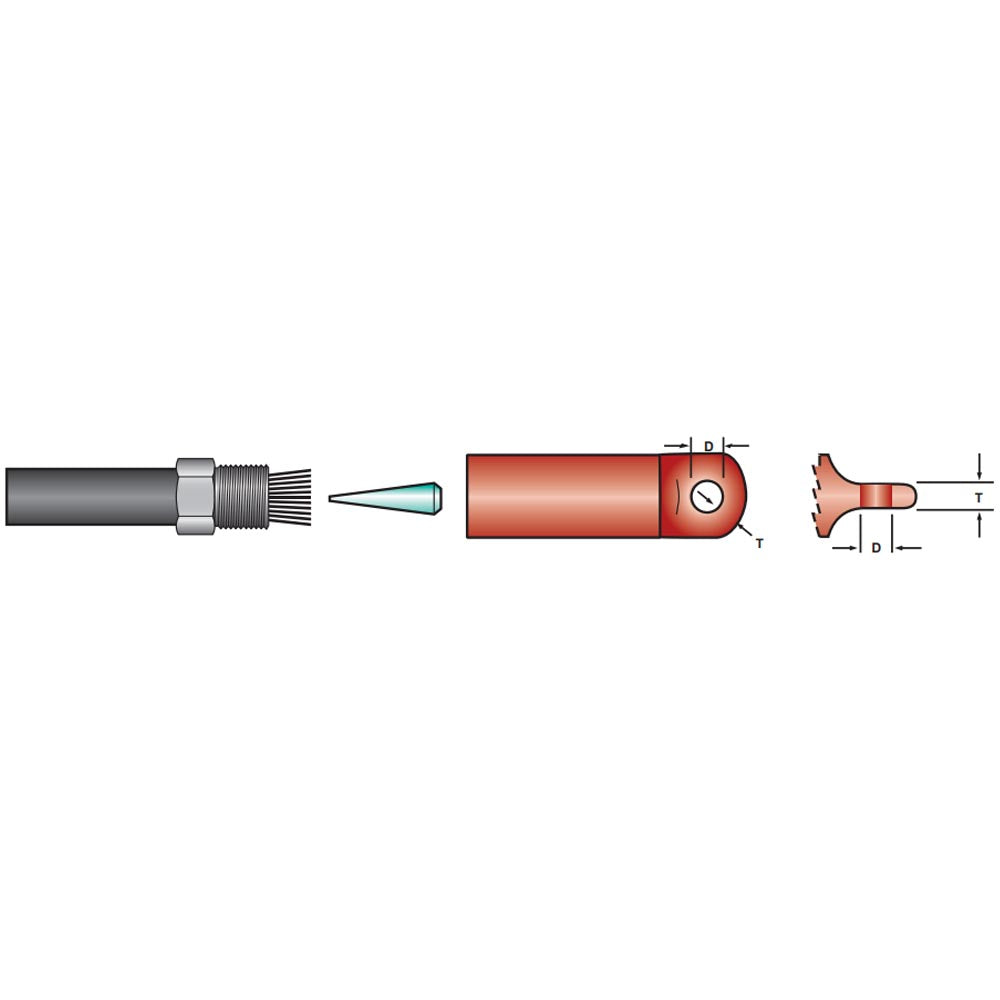

| Hole Diameter (D) | .81 in. (21 mm) |
| Eye Thickness (T) | .50 in. (13 mm) |
| Replacement Plug Part Number | 08918323 |
| Working Load | 8,500 lbs (37.8 kn) |
