Condux | SKU:
08918535
Condux 08918535 Reusable Power Pulling Eyes, Standard Head
Free Shipping
$262.39
Unit price
/
Unavailable
Description
Description
Condux 08918535 Description

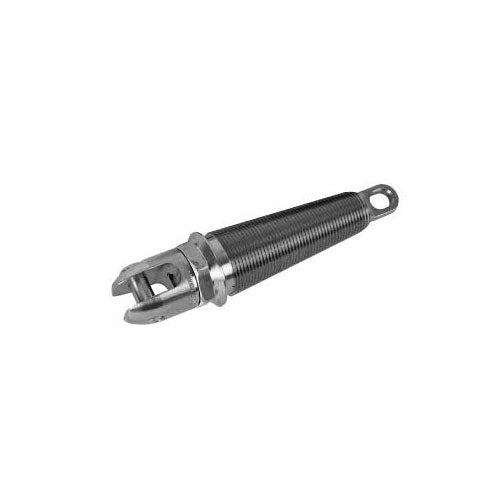

The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
Condux 08918535 Includes
- (1) Reusable Power Pulling Eyes, Standard Head
Condux 08918535 Specifications
| Cable Size | 500 kcmil |
| Color | Yellow |
| Max Conductor Diameter | 0.843" (21mm) |
| Max Eye OD | 1.880" (48mm) |
| Hole Diameter | 0.81" (21mm) |
| Eye Thickness | 0.50" (13mm) |
| Replacement Plug | 08960424 |
| Working Load | 8,500 lbs |
