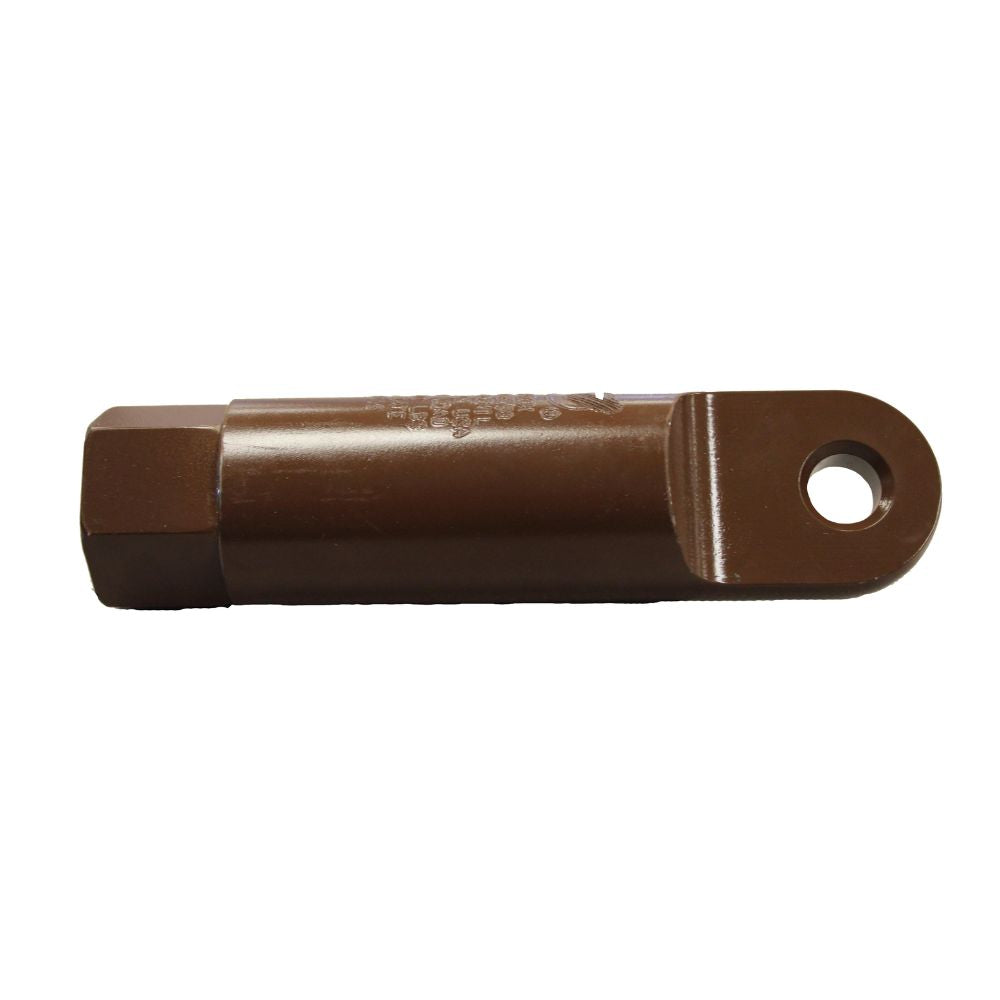

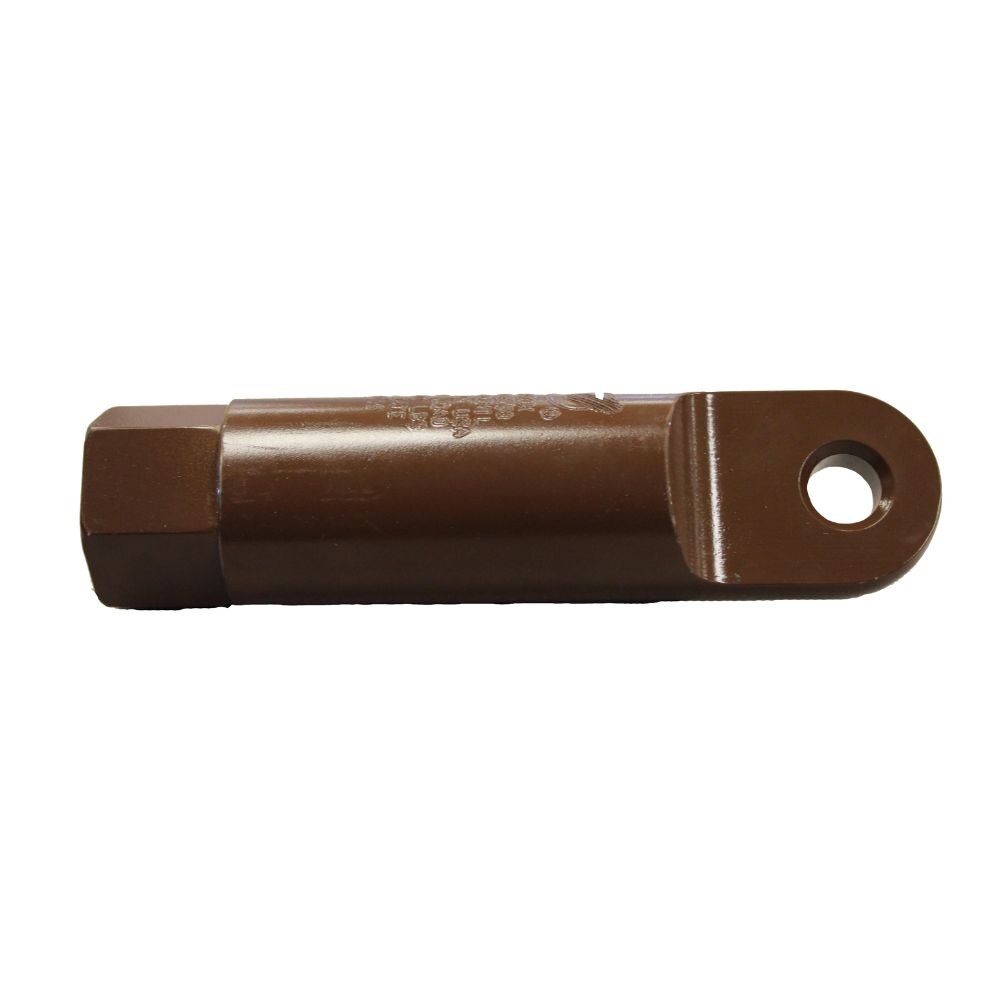

Condux 08918540 Description
The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
Condux 08918540 Includes
- (1) Eye Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08918540 Specifications
| Part Number | 08918540 |
| Cable Size | 600 kcmil |
| Color | Green |
| Maximum Conductor Diameter | .906 in. (23 mm) |
| Max Eye OD | 2.000 in. (51 mm) |
| Hole Diameter (D) | .63 in. (16 mm) |
| Eye Thickness (T) | .43 in. (11 mm) |
| Replacement Plug Part Number | 08918223 |
| Working Load | 13,500 lbs (60.0 kn) |
Toolup Part # :
446562
