Condux | SKU:
08918575

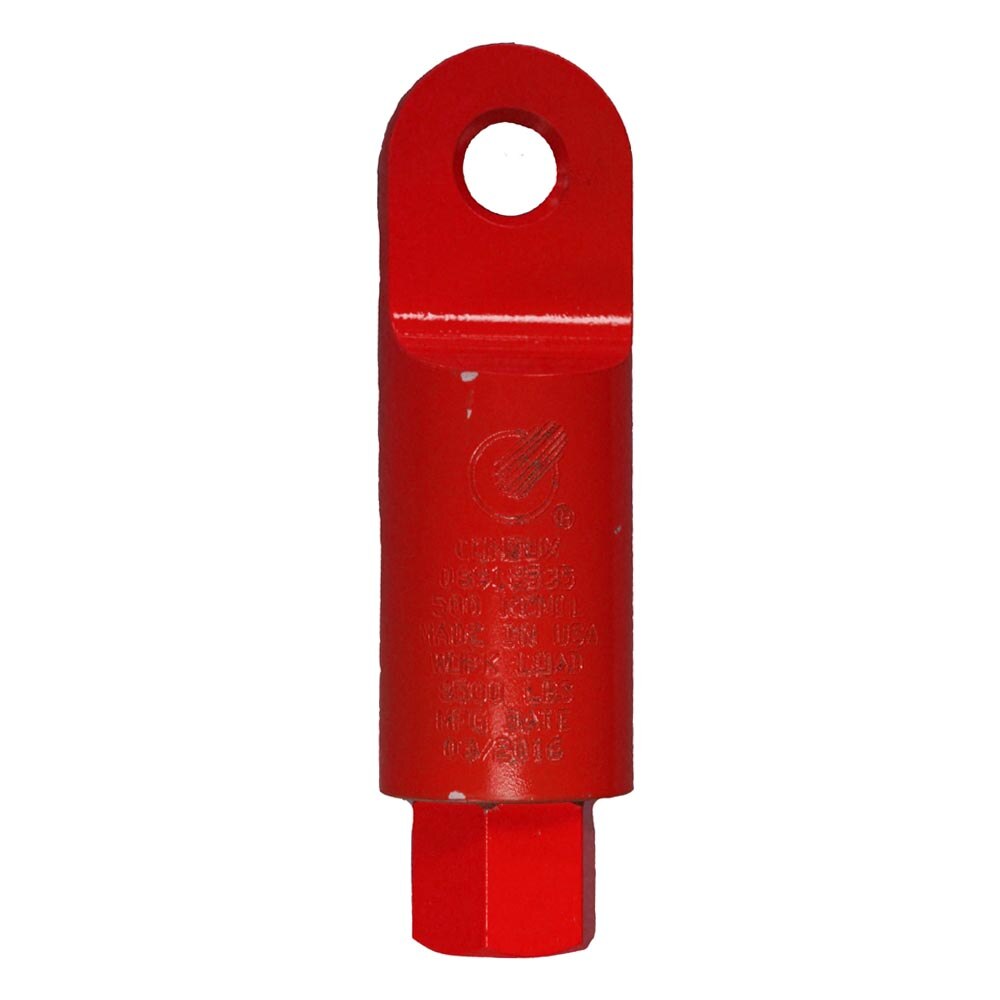

Condux 08918575 2000 kcmil Red Standard Head Power Pulling Eye
Free Shipping
$804.09
Unit price
/
Unavailable
Description
Description
Condux 08918575 Description

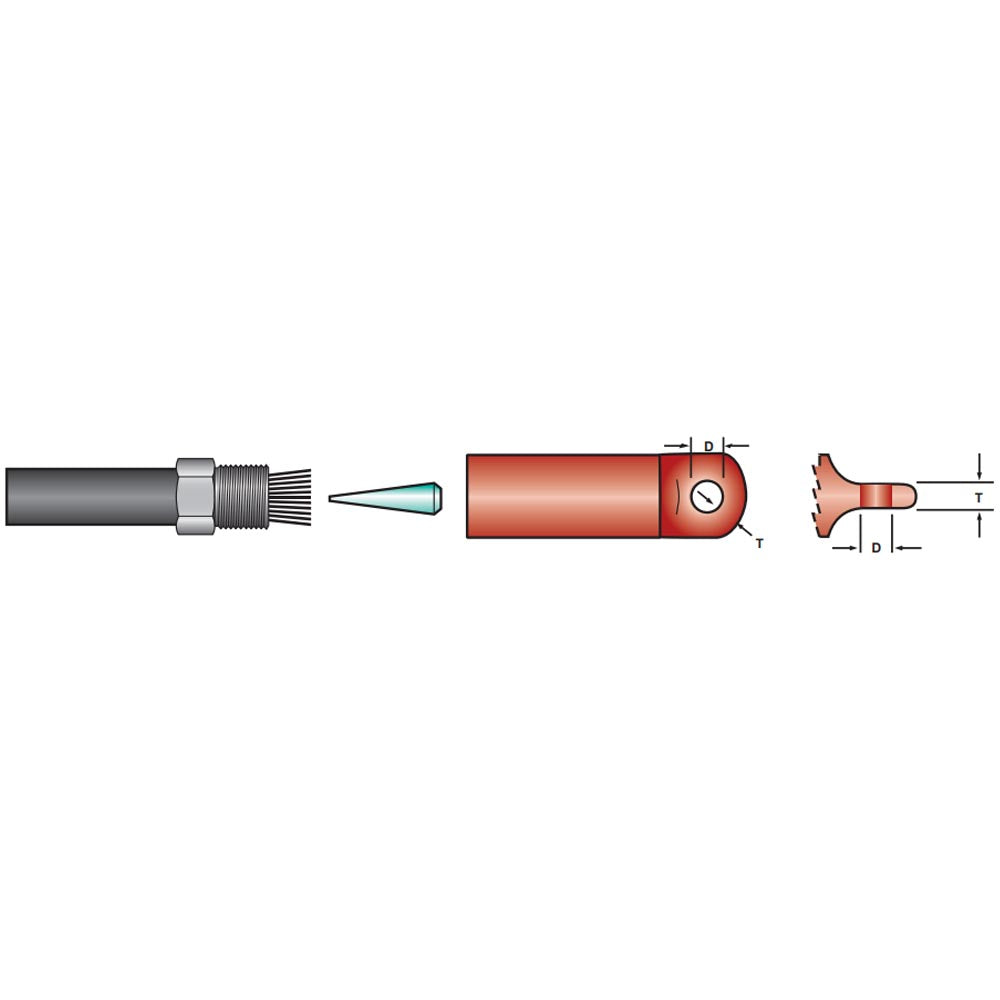

The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
Condux 08918575 Includes
- (1) Eye Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08918575 Features
- Reusable Power Pulling Eye
- Standard Head
Condux 08918575 Specifications
| Part Number | 08918575 |
| Cable Size | 2000 kcmil |
| Color | Red |
| Maximum Conductor Diameter | 1.700 in. (43 mm) |
| Max Eye OD | 2.625 in. (67 mm) |
| Hole Diameter (D) | 1.00 in. (25 mm) |
| Eye Thickness (T) | .50 in. (13 mm) |
| Replacement Plug Part Number | 08918023 |
| Working Load | 25,000 lbs (111.2 kn) |
