Condux 08960575 1/0 AWG Red Swivel Head Power Pulling Eye
Description
Description
Condux 08960575 Description

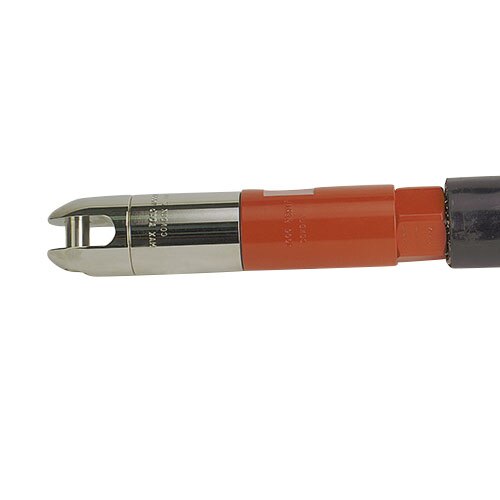

The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard reusable power pulling eyes and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08960575 Includes
- (1) Swivel Head
- (1) Sleeve Nut
- (1) Plug
Condux 08960575 Features
- Reusable
- Will fit the 1/8"" (3 mm) and 1/4"" (6 mm) cable pulling harnesses
Condux 08960575 Specifications
Part Number | 08960575 |
Cable Size | 1/0 AWG |
Color | Red |
Max Conductor Diameter | .373 in. (10 mm) |

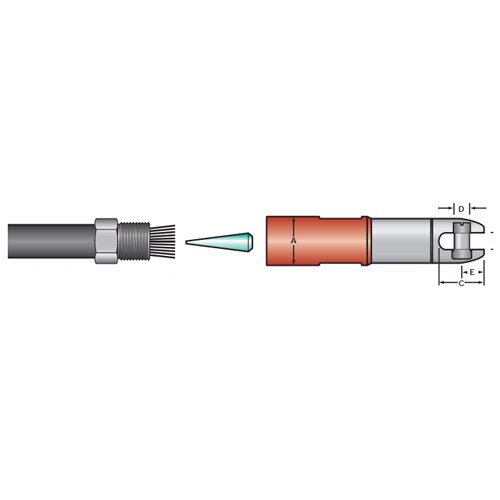

Max Eye OD (A) | .88 in. (22 mm) |
Slot Width (B) | .38 in. (10 mm) |
Slot Depth (C) | 1.06 in. (27 mm) |
Pin Diameter (D) | .31 in. (8 mm) |
Pin Center (E) | .53 in. (13 mm) |
Replacement Plug | 08960523 |
Load Rating | 2,500 lbs (1,134 kg) |
