Condux 08960715 1.37" - 1.68" Swivel Head Innerduct Pulling Eye
Description
Description
Condux 08960715 Description

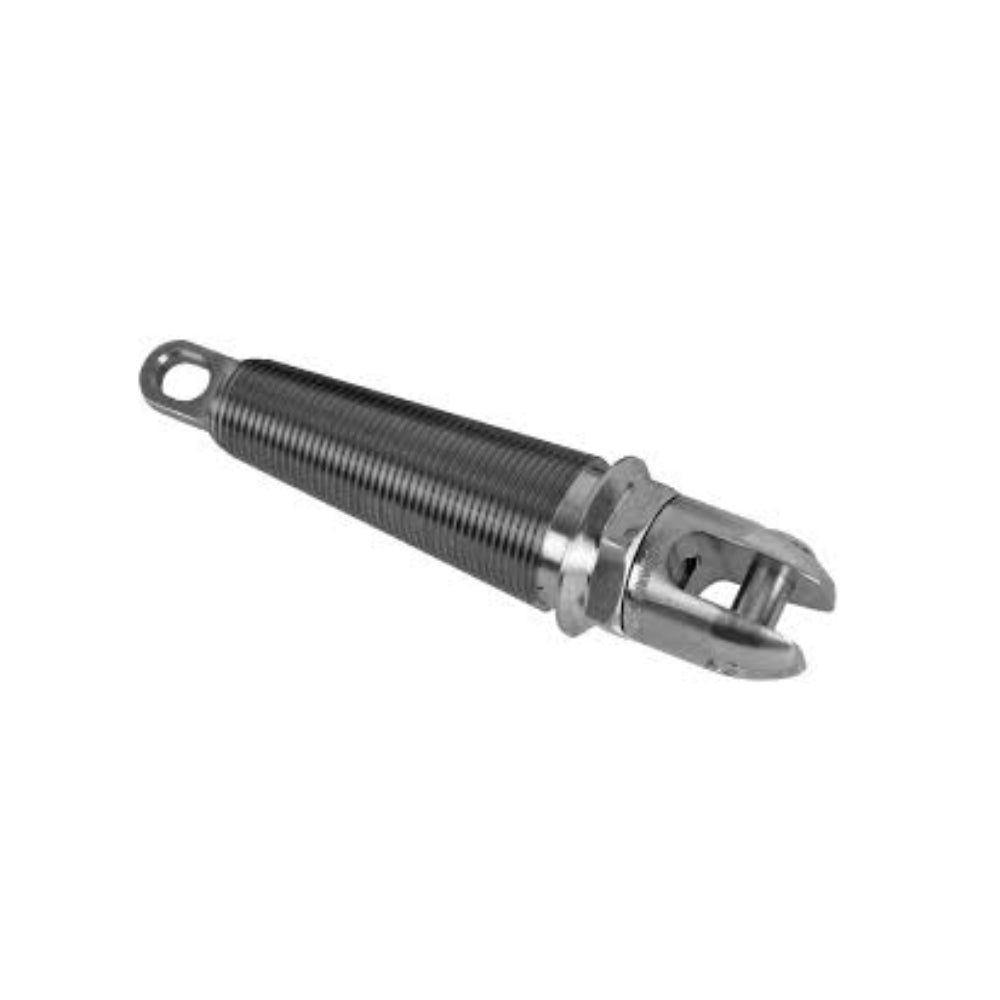

The Innerduct Pulling Eye is a hybrid tool that combines features from standard innerduct pulling eyes and Condux swivels. A swivel head prevents twisting and binding of the innerduct as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single innerducts into individual conduits or multiple innerducts into a single conduit. Its short length is an advantage on tight bends compared to using a separate swivel and pulling eye. Easily installed using a 13?8" deep socket or adjustable wrench. NOTE: To determine correct pulling eye size, obtain the actual innerduct inside diameter (I.D.). The I.D. measurement must be greater than dimension A and smaller than dimension B.
Condux 08960715 Includes
- (1) 1.37" - 1.68" Swivel Head Innerduct Pulling Eye
Condux 08960715 Features
- Will fit all Condux Pulling Harnesses
Condux 08960715 Specifications
| Part Number | 08960715 |
| Nominal Size | 1.50 in. (38 mm) |
| Innerduct ID Range (A - B) | 1.37 - 1.68 in. (35 - 43 mm) |
| Max OD (C) | 2.00 in. (51 mm) |
| Hole Diameter (D) | .44 in. (11 mm) |
| Slot Width (E) | .56 in. (14 mm) |
| Slot Depth (F) | 1.31 in. (33 mm) |
| Pin Diameter (G) | .44 in. (11 mm) |
| Pin Center (H) | .56 in. (14 mm) |
